AOS- SMVNC3568L

Product introduction：



Product Features

◆ Supports 6-way independent 10/100/1000M adaptive Ethernet;

◆ Supports up to 8GB of memory;

◆ Built in neural network NPU, supporting 1Tops computing power;

◆ 8 USB interfaces, 1 RS232 (optional TTL);

◆ Supports dual screen display, with HDMI up to 4K resolution and VGA up to 1080P resolution;

◆  Supports WiFi6, Bluetooth V5.0, and 4G full network connectivity (optional);

◆  Perfectly supports various mainstream touch screens such as infrared, capacitor, resistor, etc., and supports mainstream peripheral drivers;

◆ Support Android system customization and provide system call interface API reference code.

Operating System

Android system: Recommended Android 11.0

Linux system: optional Ubuntu 20.04, Debian 10, Linux QT

Open source HarmonyOS: optional OpenHarmony 3.2

roduct Overview

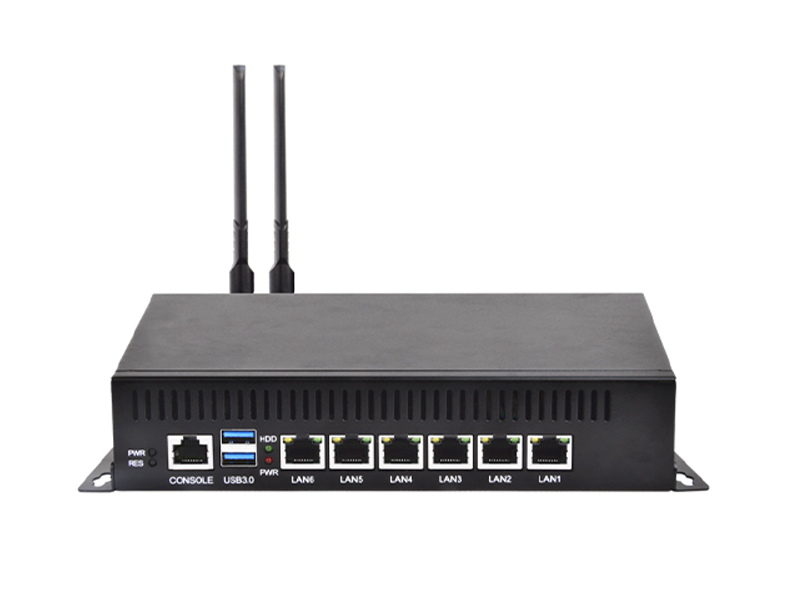

AOS-SMVNC3568L adopts the Ruixin Micro RK3568 quad core processor, with a clock speed of up to 2.0GHz. Built in independent NPU with computing power up to 1Tops. Supports dual screen display of HDMI and VGA. The host is equipped with 6 independent gigabit network ports, which have excellent data processing and network throughput capabilities.

Product hardware index

Main hardware specifications

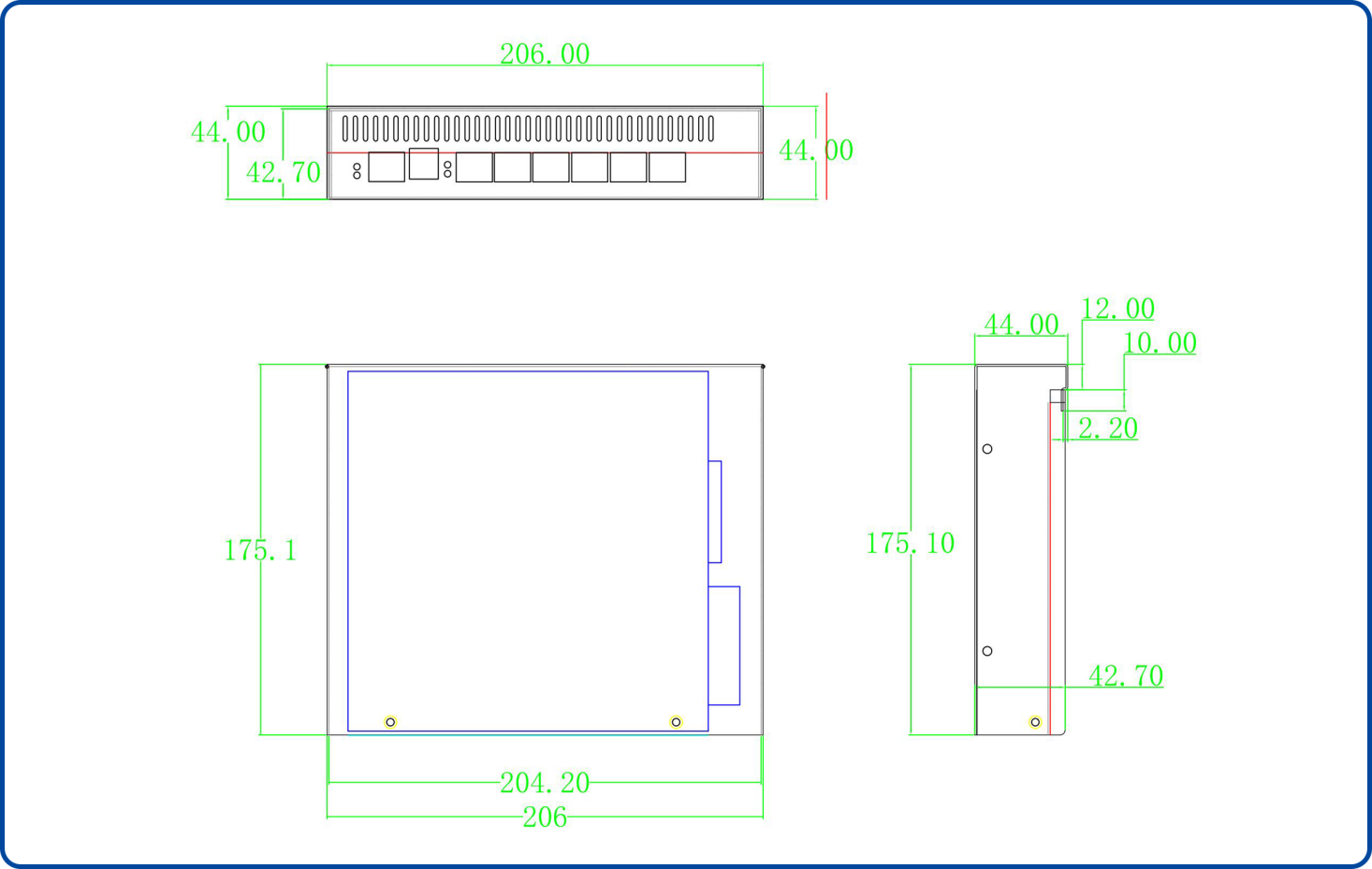

Dimensions	235*175.1*44mm
CPU	Ruixin Micro RK3568, quad core Cortex-A55, with a maximum frequency of 2.0GHz
GPU	Mali-G52 2EE
NPU	Supports up to 1Tops of computing power
DDR	Standard 2GB LPDDR4, optional 4GB/8GB
Flash	Comes standard with 16GB, supports up to 128GB

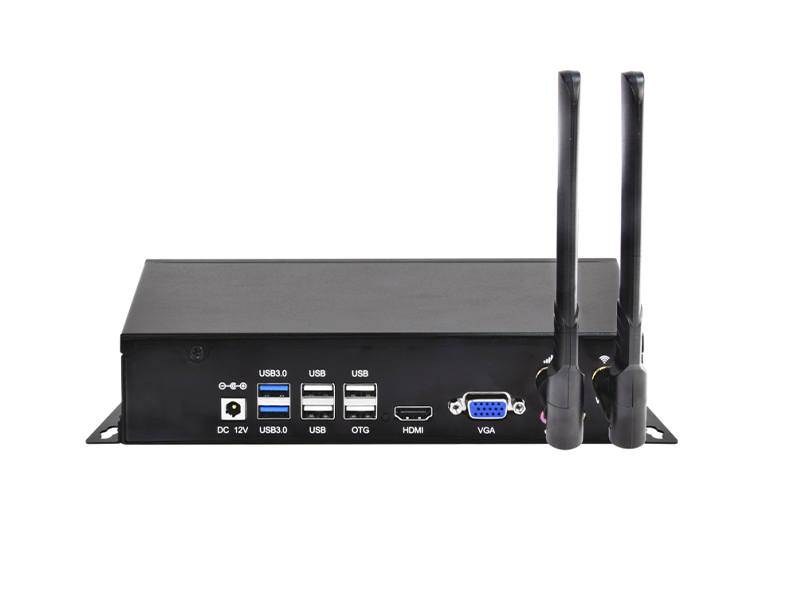

HDMI	1 channel, supporting up to 4K resolution
VGA	1 channel, supporting up to 1080P resolution
headset	1-way, three-stage 3.5mm headphone jack
microphone	1 channel, 3.5mm microphone socket
USB Host	4 USB 3.0, 4 USB 2.0
USB OTG	1 USB OTG
Serial port	1 RS232 (optional TTL)
mSATA	Built in 1 mSATA interface, supporting standard mSATA hard drives
Ethernet	6-way, 10/100/1000M adaptive Ethernet
WiFi frequency	2.4G&5G dual band
WiFi， Bluetooth	WiFi6， Bluetooth V5.0
WiFi antenna	1 piece
4G antenna	1 piece (optional)
RTC real-time clock	support
Timed power on/off	support
system upgrade	Support local USB upgrade
relative humidity	0%~95% (non condensing)
operation temperature	-20℃~70℃
power supply	9V~15V wide voltage DC (optional 18V~52V)
