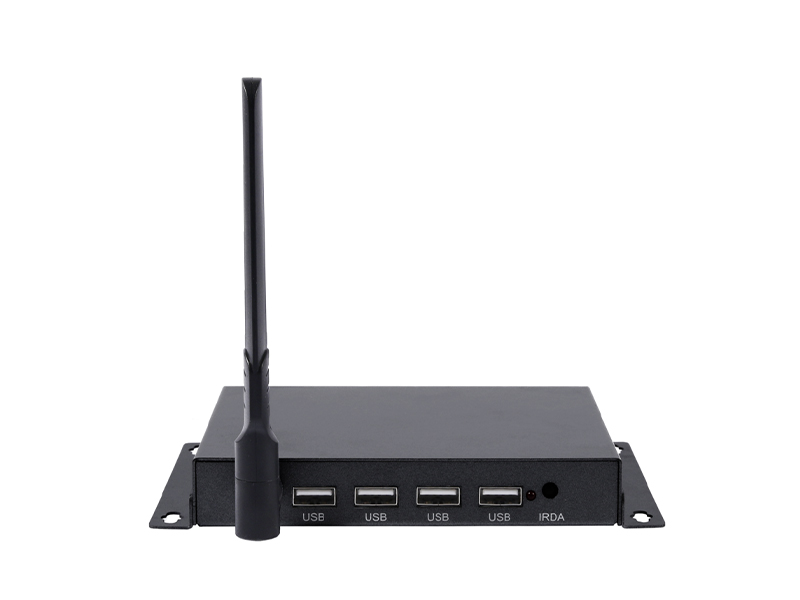

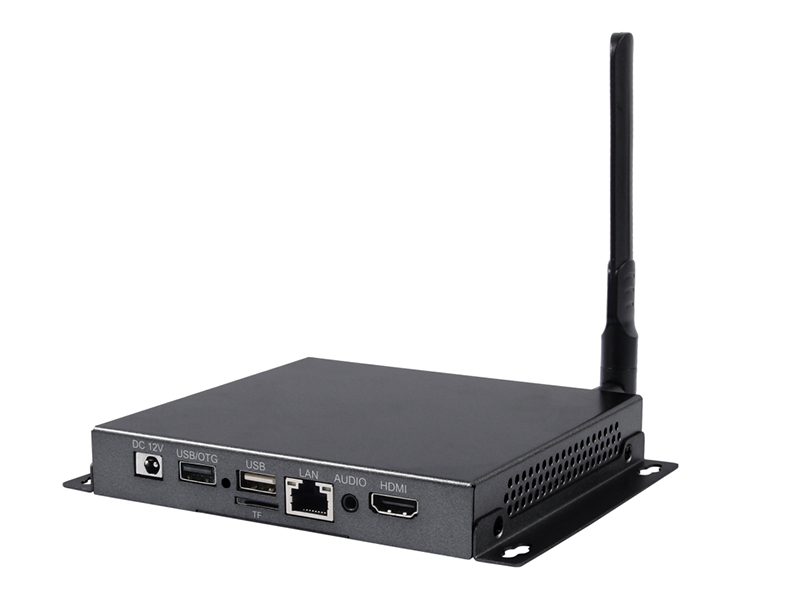

AOS-SMHS32884UL
Product introduction：
Rockchip RK3288 quad-core Cortex-A17 CPU
Rockchip RK3399 (dual-core A72 + quad-core A53) hexa-core processor
Rockchip RK3566 quad-core Cortex-A55 processor with a maximum clock speed of 1.8GHz
Rockchip RK3568 quad-core Cortex-A55 processor
Powered by the Allwinner A40i quad-core Cortex-A7 processor
TV + host = smart advertising machine (commercial);
Supports WiFi, Bluetooth, and Ethernet;
One remote control head and one burn button;
Supports split-screen playback, landscape and portrait playback, and auto-play upon startup;
Supports image and video carousel, scrolling subtitles, and more.
Multiple versions of CPU are available
Version 1
Powered by the Rockchip RK3288 quad-core Cortex-A17 CPU, running Android 7.1, with a clock speed of up to 1.8GHz, and a Mali-T764 GPU, it supports 4K HDMI display and offers excellent value for money. It supports decoding of most popular video and image formats, making it the perfect choice for advertising machines and smart terminals.
Version 2
Powered by the Rockchip RK3399 (dual-core A72 + quad-core A53) hexa-core processor with a clock speed of up to 1.8GHz, it offers exceptional general-purpose computing performance. It also features a Mali-T860 GPU, supporting up to 4K decoding. Interfaces include Gigabit Ethernet, USB 3.0, and a headset, supporting a wide range of peripheral expansion, making it the perfect choice for industrial control projects.
Version 3
Powered by the Rockchip RK3566, a quad-core Cortex-A55 processor with a clock speed of up to 1.8GHz, it offers exceptional general-purpose computing performance. It also features a built-in independent NPU, delivering up to 1 TOPs of computing power, and supports 4K displays. Interfaces include Gigabit Ethernet, USB 3.0, and a headset, allowing for a wide range of peripheral expansion, making it the perfect choice for industrial control projects.
Version 4
Powered by the Rockchip RK3568, a quad-core Cortex-A55 processor with a clock speed of up to 2.0GHz, it offers exceptional general-purpose computing performance. It also features a built-in independent NPU, delivering up to 1 TOPs of computing power, and supports 4K displays. Interfaces include Gigabit Ethernet, USB 3.0, and a headset, allowing for a wide range of peripheral expansion, making it the perfect choice for industrial control projects.
Version 5
Powered by the Allwinner A40i quad-core Cortex-A7 processor and running Android 7.1, it boasts a clock speed of up to 1.2GHz and offers excellent value for money. It also features a Mali-400 MP2 GPU and supports decoding of most popular video and image formats, making it an excellent choice for advertising displays and smart terminals.
=quad-core processor and running Android 7.1, it offers exceptional value for money.
Product Features
Powered by the Rockchip RK3288 quad-core processor and running Android 7.1, it offers exceptional value for money.
Supports 12V power input.
Comprehensive expansion ports, including 6 USB 2.0 ports (one USB OTG).
TV + console = smart advertising machine (commercial use).
Supports dual-band 2.4G & 5G WiFi (standard configuration: single-band 2.4G).
One remote control and one flash button.
Supports split-screen playback, landscape or portrait playback, and auto-play upon startup.
Supports image and video carousel, scrolling subtitles, and more.
Specifications
Main Hardware index | |
Size | 160.2*124*22mm (With hanging hole) |
CPU | Allwinner A40i, quad-core Cortex-A7, up to 1.2GHz Rockchip RK3568, quad-core Cortex-A55, up to 2.0GHz Rockchip RK3566, quad-core Cortex-A55, up to 1.8GHz Rockchip RK3399, quad-core Cortex-A72 + dual-core Cortex-A53 Up to 1.8GHz Rockchip RK3288, quad-core Cortex-A17, up to 1.8GHz |
GPU |
Mali-400 MP2 Mali-G52 2EE Mali-G52 2EE Mali-T860 Mali-T764 |
DDR | With Standard 2GB LPDDR4, 4GB Optional |
Flash | Standard 16GB, up to 128GB |
HDMI output | 1, supports up to 4K output |
HDMI Version | HDMI 2.0 |
Headphone | 1-WAY, support CTIA 4-pole HP/Mic 3.5mm socket |
Video Format | Support WMV, AVI, RMVB, mpeg, mp4 etc. |
Picture Format | Support BMP, JPEG, PNG |
USB Host | 4 USB2.0, 2 USB3.0 |
USB OTG | 1 USB OTG |
Ethernet | 1, 10/100/1000M adaptive Ethernet |
WiFi Frequency | 2.4G single frequency (optional 2.4G/5G dual frequency) |
WiFi/BT | Built in WiFi6, BT5.2 |
WiFi ANT | 1 |
TF Card | Support up to 256GB |
Burn key | Firmware upgrade |
RTC Real Time Clock | Support |
Timer switch | Support |
System Upgrade | Support local USB upgrade |
Humidity | 0% ~ 95%（no condensation） |
Working Temp | -20°C ~ 70°C |
Power | 9V ~ 15V wide voltage DC |
Parameter diagram
Applicable fields
It is an industrial control host and is widely used in smart display terminal products, video terminal products, and industrial control terminal products, such as smart home appliances, smart interactions, and robotic equipment.
