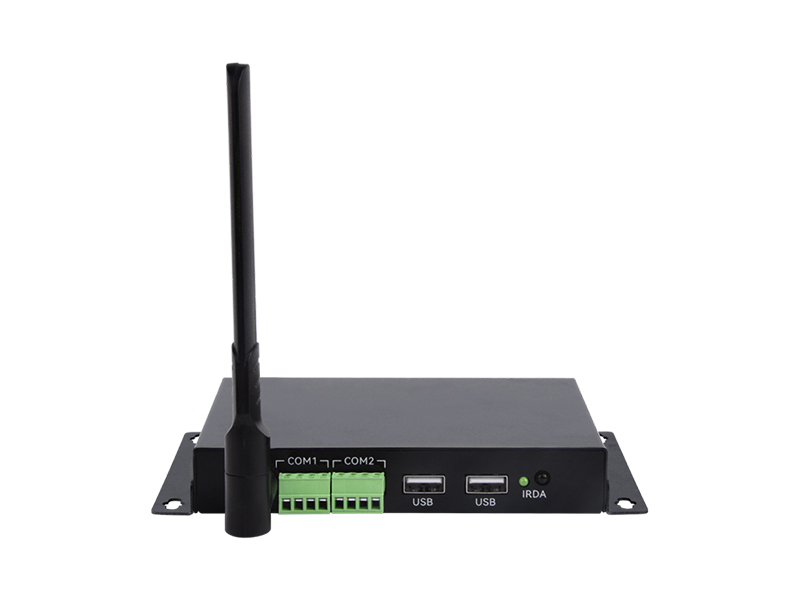

AOS-SMHS32882U2CL
Product introduction：
Rockchip RK3288 quad-core Cortex-A17 CPU, running Android 7.1.
Rockchip RK3399 (dual-core A72 + quad-core A53) hexa-core processor, clocked at up to 1.8GHz.
Rockchip RK3566 quad-core Cortex-A55 processor, clocked at up to 1.8GHz, with a built-in independent NPU.
Rockchip RK3568 quad-core Cortex-A55 processor, clocked at up to 2.0GHz, with a built-in independent NPU and a computing power of 1 TOPs.
Allwinner A40i quad-core Cortex-A7 CPU, running Android 7.1, clocked at up to 1.2GHz.
Multiple CPU Versions Available
Version 1
Powered by the Rockchip RK3288 quad-core Cortex-A17 CPU and running Android 7.1, with a clock speed up to 1.8GHz, this ultra-slim and compact device can be flexibly embedded into a variety of industrial field equipment. Interfaces include serial, USB, and headset ports, supporting a wide range of peripheral expansion, making it the perfect choice for industrial control projects. Android: Android 7.1 recommended, with Android 5.1/6.0/8.1 optional. Linux: Ubuntu 18.04, Debian 9, and Linux Buildroot available.
Version 2
Powered by the Rockchip RK3399 (dual-core A72 + quad-core A53) hexa-core processor, with a maximum clock speed of 1.8GHz, it offers exceptional general-purpose computing performance. Its ultra-thin and compact design allows for flexible integration into a variety of industrial field equipment. It features interfaces such as serial, USB, and a headset, supporting a wide range of peripheral expansion options, making it an excellent choice for industrial control projects. Android: Android 7.1 is recommended, with Android 8.1/9.0 optional. Linux: Ubuntu 18.04, Debian 9, and Linux Buildroot are available.
Version 3
Powered by the Rockchip RK3566 quad-core Cortex-A55 processor, it boasts a maximum clock speed of 1.8GHz and a built-in independent NPU, delivering up to 1 TOPs of computing power. This ultra-thin and compact device can be flexibly embedded into various industrial field equipment. It features interfaces such as serial, USB, and a headset, supporting a wide range of peripheral expansion options, making it an excellent choice for industrial control projects. Android: Android 11.0 is recommended. Linux: Ubuntu 18.04, Debian 10, and Linux Buildroot are available.
Version 4
Powered by the Rockchip RK3568 quad-core Cortex-A55 processor, it boasts a maximum clock speed of 2.0GHz and a built-in independent NPU, delivering up to 1 TOPs of computing power. This ultra-thin and compact device can be flexibly embedded into various industrial field equipment. It features serial, USB, and headset interfaces, supporting a wide range of peripheral expansion options, making it an excellent choice for industrial control projects. Android: Android 11.0 is recommended. Linux: Ubuntu 20.04, Debian 10, and Linux Buildroot are available. The open-source Hongmeng OS: OpenHarmony 3.2 is available.
Version 5
Powered by the Allwinner A40i quad-core Cortex-A7 CPU and running Android 7.1, it boasts a clock speed of up to 1.2GHz and offers excellent value for money. Its ultra-thin and compact design allows for flexible integration into a variety of industrial field equipment. Equipped with serial, USB, and headset interfaces, it supports a wide range of peripheral expansion, making it an excellent choice for industrial control projects. Android OS: Android 7.1 recommended.
Product Features
Powered by the Allwinner A40i quad-core architecture and running Android 7.1, it offers exceptional value for money.
Supports 9V-15V power input.

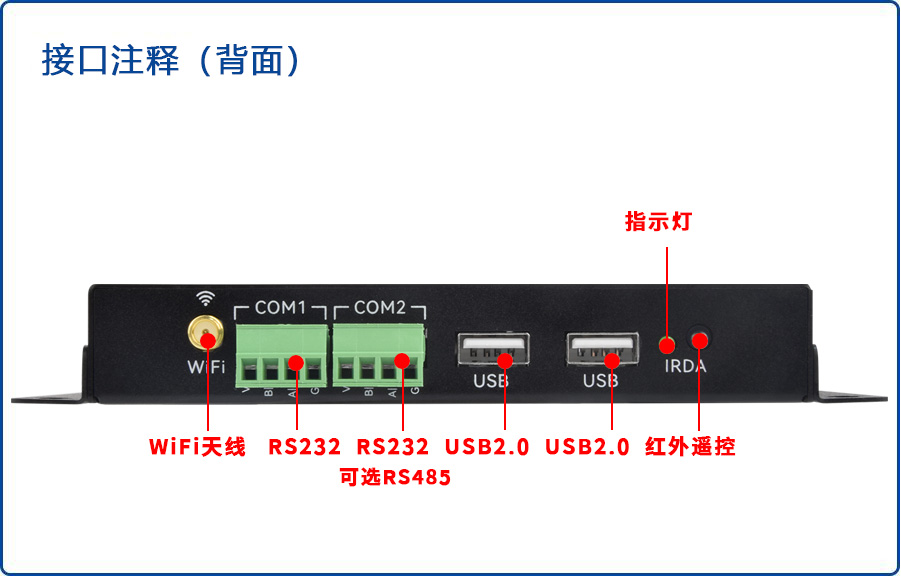

Comprehensive expansion interfaces: 4 USB ports, 2 RS232 ports (optional 2 RS485 ports).
Supports WiFi, Ethernet, and Bluetooth.
1 infrared remote control, 1 flash key.
Fully supports a variety of mainstream touch screens, including infrared, capacitive, and resistive, and supports mainstream peripheral drivers.
Supports Android system customization, with system call API reference code provided.

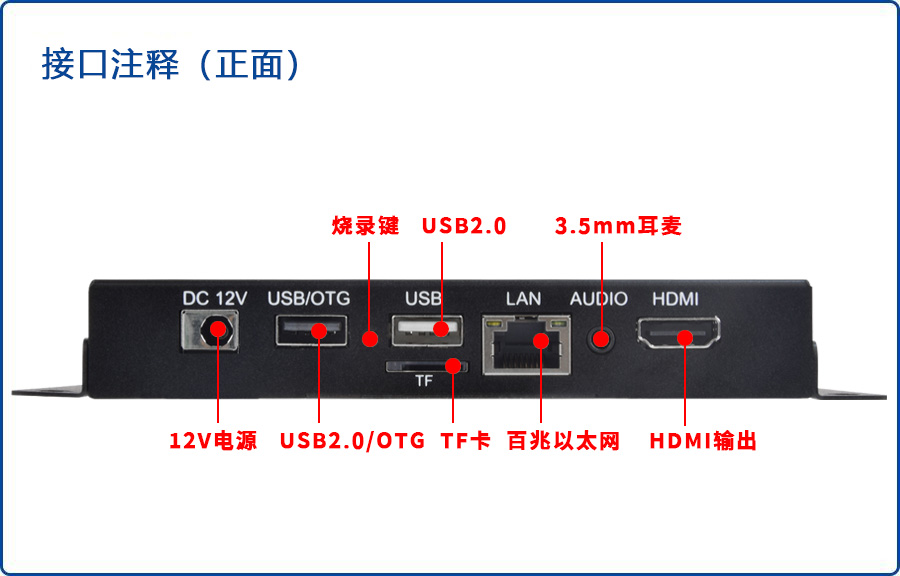

Main Hardware index | |
Size | 160.2*124*22mm (With hanging hole) |
CPU | Rockchip RK3288, quad-core Cortex-A17, up to 1.8GHz Rockchip RK3399, dual-core Cortex-A72 + quad-core Cortex-A53, up to 1.8GHz Rockchip RK3566, quad-core Cortex-A55, up to 1.8GHz Rockchip RK3568, quad-core Cortex-A55, up to 2.0GHz Allwinner A40i, quad-core Cortex-A7, up to 1.2GHz |
GPU | Mali-T764 Mali-T860 Mali-G52 2EE Mali-G52 2EE Mali-400 MP2 |
DDR | With Standard 2GB, 4GB Optional |
Flash | Standard 8GB, up to 128GB |
HDMI output | 1, supports 1080P, 4K output |
Headphone | 1-WAY, support CTIA 4-pole HP/Mic 3.5mm socket |
USB Host | 4 USB2.0 |
USB OTG | 1 USB OTG |
Serial port | 2 RS232 (optional 1 RS485) |
Ethernet | 1, 10/100M adaptive Ethernet |
WiFi Frequency | 2.4G single frequency (optional 2.4G/5G dual frequency) |
WiFi/BT | Built in WiFi6, BT5.2 |
WiFi ANT | 1 |
TF Card | Support up to 256GB |
Burn key | Firmware upgrade |
RTC Real Time Clock | Support |
Timer switch | Support |
System Upgrade | Support local USB upgrade |
Humidity | 0% ~ 95%（no condensation） |
Working Temp | -20°C ~ 70°C |
Power | 9V ~ 15V wide voltage DC |
串口定义说明
尺寸图
尺寸标注
Applications
This Android industrial control host is widely suitable for smart display devices, video devices, and industrial automation devices, such as smart commercial displays, all-in-one industrial computers, smart interactive systems, and robots.
