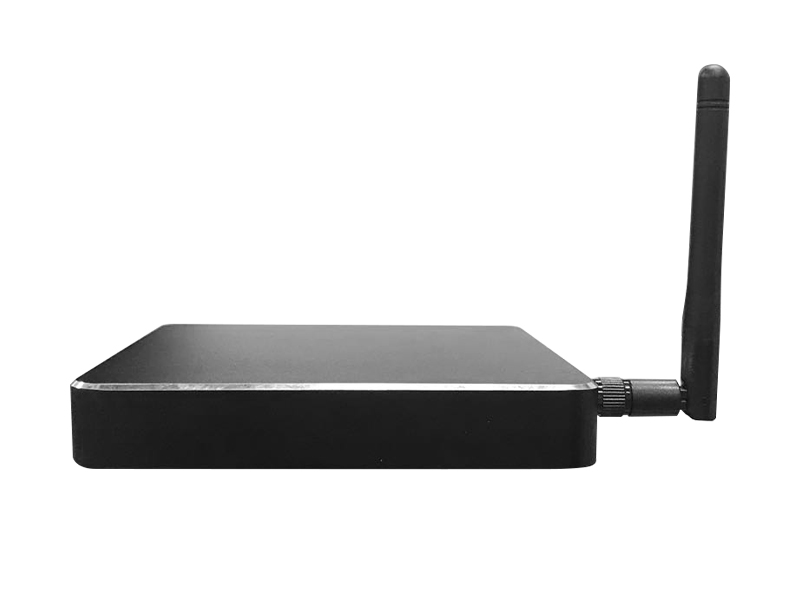

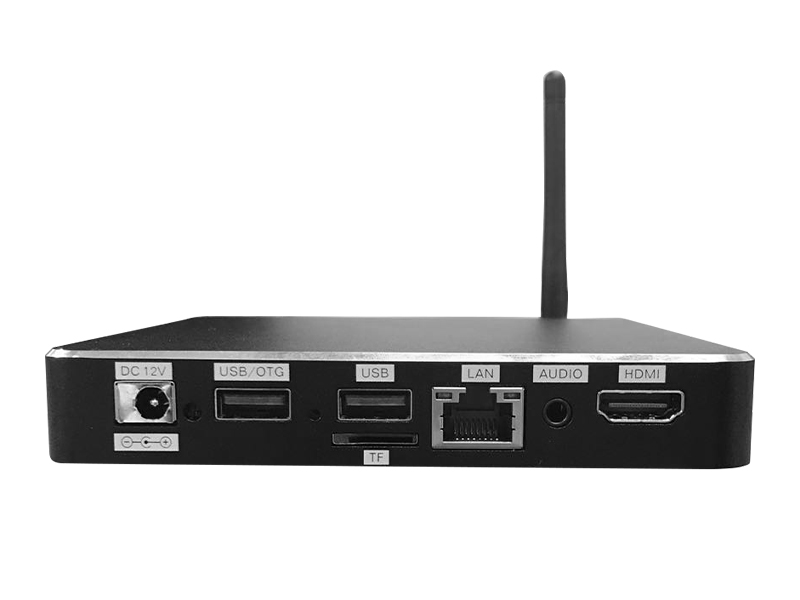

AOS-SMHEC3288L

Product introduction：

Version 1

Powered by the Rockchip RK3288 quad-core Cortex-A17 CPU, running Android 7.1, with a clock speed of up to 1.8 GHz and a Mali-T764 GPU, it supports 4K HDMI display and offers excellent value for money. It supports decoding of most popular video and image formats, making it the perfect choice for advertising machines and smart terminals.

Version 2

Powered by the Rockchip RK3399 (dual-core A72 + quad-core A53) hexa-core processor, with a clock speed of up to 1.8 GHz, it offers exceptional general-purpose computing performance. It also features a Mali-T860 GPU, supporting up to 4K decoding. Interfaces include Gigabit Ethernet, USB 3.0, a headset, and support for a wide range of peripheral expansion, making it the perfect choice for industrial control projects.

Version 3

Powered by the Rockchip RK3566, a quad-core Cortex-A55 processor with a clock speed of up to 1.8GHz, it offers exceptional general-purpose computing performance. A built-in independent NPU delivers a computing power of up to 0.8 Tops per second and supports 4K displays. Interfaces include Gigabit Ethernet, USB 3.0, and a headset, allowing for a wide range of peripheral expansion, making it the perfect choice for industrial control projects.

Version 4

Powered by the Rockchip RK3568, a quad-core Cortex-A55 processor with a clock speed of up to 2.0GHz, it offers exceptional general-purpose computing performance. A built-in independent NPU delivers a computing power of up to 0.8 Tops per second and supports 4K displays. Interfaces include Gigabit Ethernet, USB 3.0, and a headset, allowing for a wide range of peripheral expansion, making it the perfect choice for industrial control projects.

Version 5

Powered by the Allwinner A40i quad-core Cortex-A7 CPU and running Android 7.1, it boasts a clock speed of up to 1.2 GHz and offers excellent value for money. It also features a Mali-400 MP2 GPU and supports decoding of most popular video and image formats, making it an excellent choice for advertising displays and smart terminals.

Product hardware indicators

Key hardware metrics
Overall dimensions	127*127*20mm
CPU	Rockchip Cortex-A17 quad-core, 1.8GHz, Android 7.1
GPU	Mali-T764 high-performance GPU
Memory	2GB standard, 4GB optional
Storage	16GB standard, up to 128GB supported
HDMI output	1 port, supports 1080P and 4K output
Video format support	Supports WMV, AVI, RMVB, MPEG, MP4, etc.
Image format support	Supports BMP, JPEG, PNG
Headphone output	Supports one headphone and MIC port
USB port	6 USB ports, one 10/100Mbps
Ethernet	Built-in Wi-Fi, BT4.0
Wi-Fi, BT	Supports TF cards
TF card	Supports local USB upgrades
RTC (Real-time Clock)	0% to 95% (non-condensing)
Power on/off timer	-20°C to +70°C
System upgrade	127*127*20mm
Relative humidity	Rockchip Cortex-A17 quad-core, 1.8GHz, Android 7.1
Operating temperature	Mali-T764 high-performance GPU
storage temperature	-40℃~+70℃

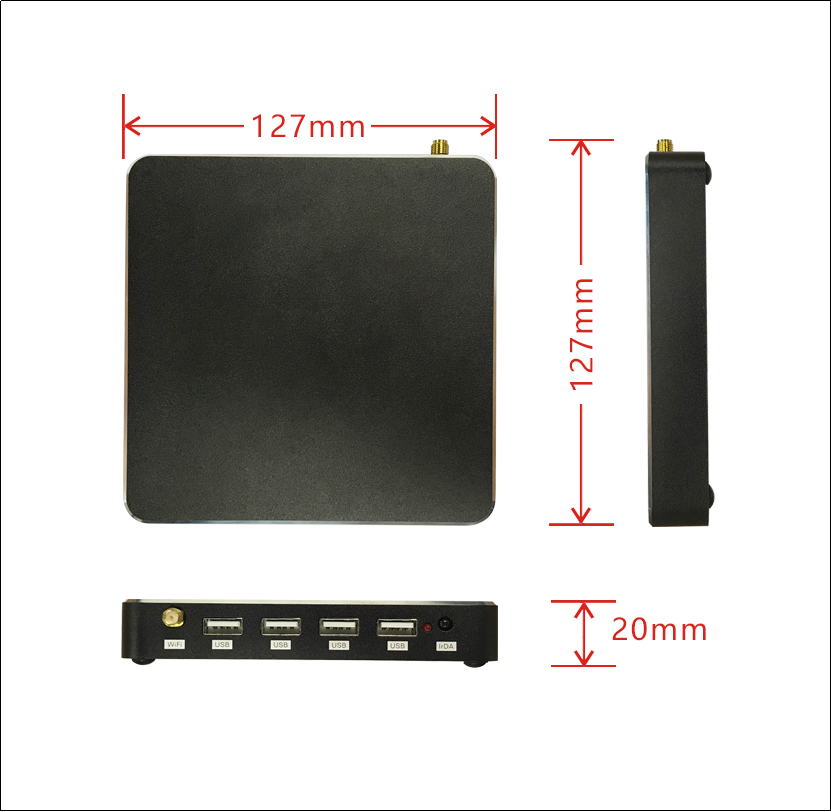

Product size chart:

Applications

This Android industrial control host is widely suitable for smart display devices, video devices, and industrial automation devices, such as advertising machines and digital signage.
