AOS-SMHDK3288L
Product introduction：
Supports a wide voltage input range of 9V-15V;
Supports HDMI output and input;
4 USB ports, 2 RS232 (optional 2 RS485), 6 KIO ports;
Supports WiFi (optional WiFi 6), Bluetooth V5.2, and Ethernet;
Built-in Mini PCIe interface, supports various 4G modules from YUGE, Quectel, and others (optional);
Multiple function buttons (1 illuminated switch, 1 burn button);
Fully supports various mainstream touch screens, including infrared, capacitive, and resistive, and supports mainstream peripheral drivers.
Multiple versions available
Version 1
Powered by the Rockchip RK3288 quad-core processor, clocked at up to 1.8GHz, and pre-installed with Android 7.1. It features a rich set of expansion ports, allowing for flexible integration with various peripherals. Its ultra-thin design accommodates diverse deployment scenarios. Android: Pre-installed with Android 7.1, with Android 5.1/6.0/8.1 optional. Linux: Available with Ubuntu 18.04, Debian 9, or Linux Buildroot.
Version 2
Powered by the Rockchip RK3368 octa-core processor, clocked at up to 1.5GHz, and pre-installed with Android 5.1. It features a rich set of expansion ports, allowing for flexible integration with various peripherals. Its ultra-thin design accommodates diverse deployment scenarios. Android: Pre-installed with Android 5.1, with Android 6.0 optional.
Version 3
Powered by the Rockchip RK3399 hexa-core processor, clocked at up to 1.8GHz, and pre-installed with Android 7.1. It features a rich set of expansion ports, allowing for flexible integration with various peripherals. Its ultra-thin design accommodates diverse deployment scenarios. Android: Pre-installed with Android 7.1, with Android 8.1/9.0 optional. Linux: Available with Ubuntu 18.04, Linux Buildroot, or Debian 9.
Version 4
Powered by the Rockchip RK3566 quad-core processor, clocked at up to 1.8GHz, and featuring a built-in independent NPU, it boasts a computing power of up to 1 TOPs. It features a rich set of expansion ports, allowing for flexible integration with various peripherals. Its ultra-thin design accommodates diverse deployment scenarios. Android: Available with Android 11. Linux: Available with Ubuntu 18.04, Linux Buildroot, or Debian 10.
Product hardware index
Key hardware metrics | |
Overall dimensions | 212.2*138*22mm (including mounting ears) |
CPU | Rockchip RK3288, RK3368，RK3399，RK3566，CPU |
GPU | Mali-T764 |
Memory | 2GB standard, 4GB optional |
Storage | 16GB, up to 128GB supported |
HDMI output | Supports up to 4K resolution |
HDMI input | Supports 720p and 1080p signals |
Headphones | 1 US standard 4-way 3.5mm headset jack |
USB host | 4 USB 2.0 ports |
USB OTG | 1 Micro USB port |
Serial port | 2 RS232 ports (optional 2 RS485 ports) |
KIO | 6 ports |
Ethernet | 1 10/100Mbps port |
WiFi | 802.11 b/g/n (optional WiFi 6) |
Bluetooth | Bluetooth V5.2 |
4G | 1 Mini PCIe expansion port (optional) |
WiFi antenna | 1 port |
4G antenna | 1 port (optional) |
Infrared remote control | 1 port |
Indicator light | Remote control |
TF card | Up to 256GB |
SIM card holder | 1 Nano-SIM card |
Power supply | 9V~15V DC wide voltage range |
Relative humidity | 0%~95% (non-condensing) |
Operating temperature | -20℃~70℃ |

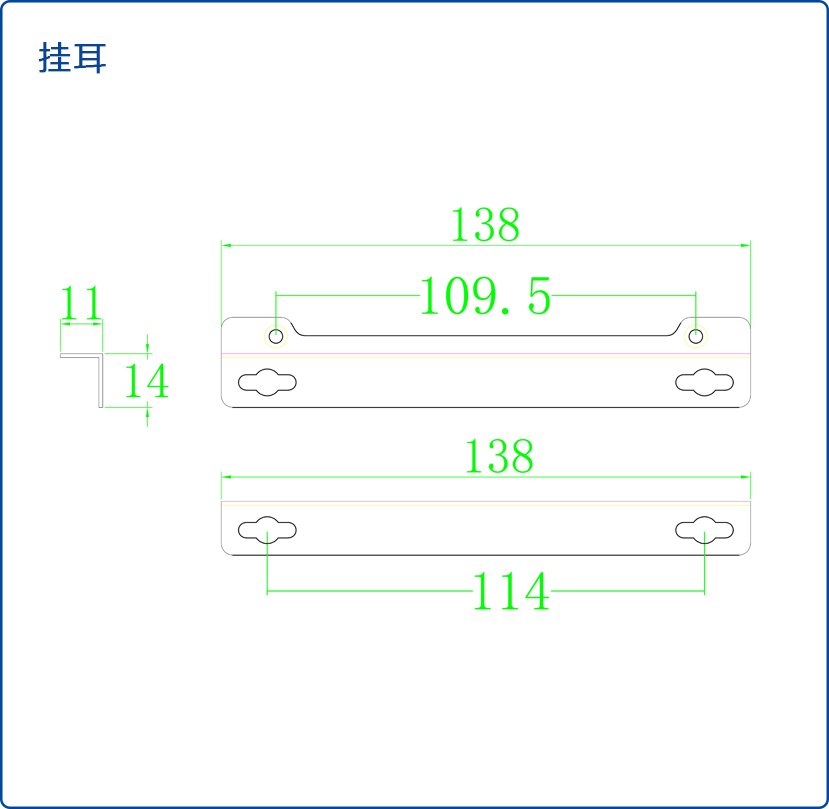

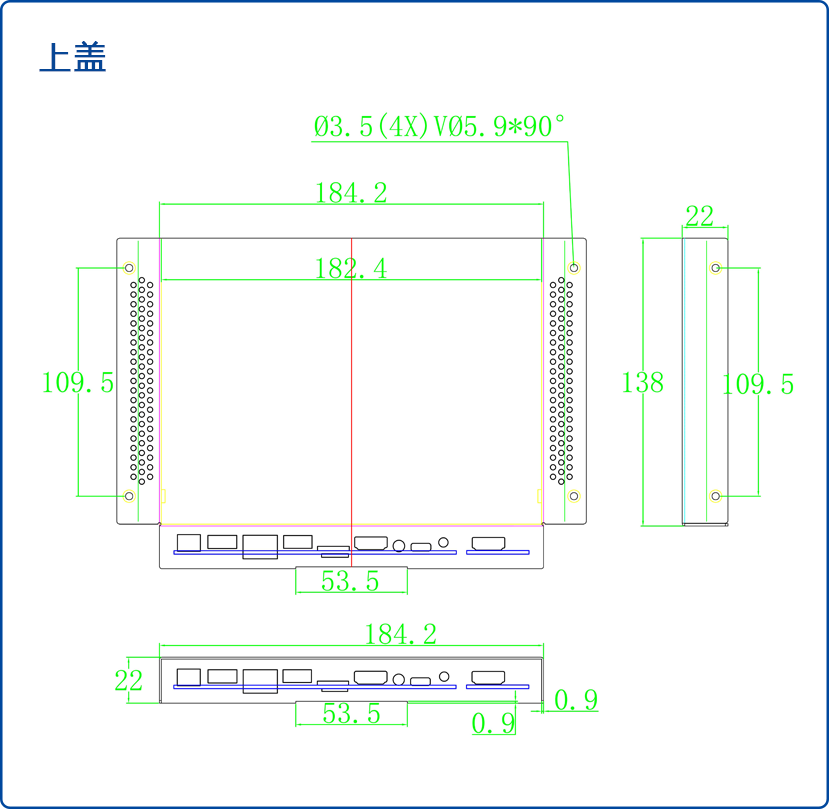

Dimensional drawing
