AOS-SMDEC3568L

Product introduction：

Product Overview

Version 1:

Powered by the Rockchip RK3568 quad-core A55 CPU,

 clocked at up to 2.0GHz and built on a 22nm advanced process,

it offers low power consumption and high performance.

 It also integrates a high-performance Mail-G52 GPU,

 supporting up to 4K displays. Interfaces include dual Gigabit Ethernet,

 RS232, HDMI output, WiFi, and 4G, supporting a wide range of peripheral expansions,

 making it the perfect choice for industrial control projects.

Version 2:

Powered by the Rockchip RK3588 octa-core (quad-core Cortex-A76 + quad-core Cortex-A55) processor

with a built-in independent NPU, delivering up to 6.0 TOPs of computing power. Built on a high-end 8nm

process and clocked at up to 2.4GHz, it also integrates a Mail-G610 MC4 GPU, supporting up to 8K video

 decoding. Furthermore, it includes dual Gigabit Ethernet, RS232, RS485 (optional), and HDMI output,

supporting a wide range of peripheral expansions, making it the perfect choice for industrial control projects.

Features

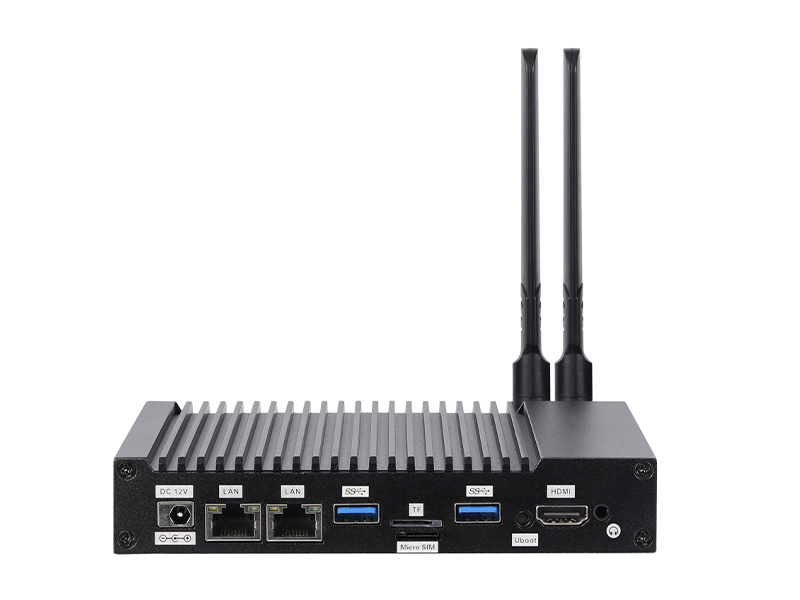

Dual Gigabit Ethernet ports

Supports up to 32GB of memory

Supports WiFi 6 and BT 5.0

Built-in independent NPU, supporting 6.0 Tops AI computing power

Comprehensive expansion interfaces, including 6 USB ports and 2 RS232 serial ports (optional RS485)

Runs Android 12.0 and Linux

HDMI 2.1, supports up to 8K output

Built-in PCI-E 4G port, supports various PCI-E 4G modules from Yuge and Quectel

Supports Android system customization, with system call API reference code provided

Android: Android 12.0 recommended

Linux: Linux Buildroot, Debian 11, and Ubuntu 20.04 available

product hardware specifications

Key hardware metrics

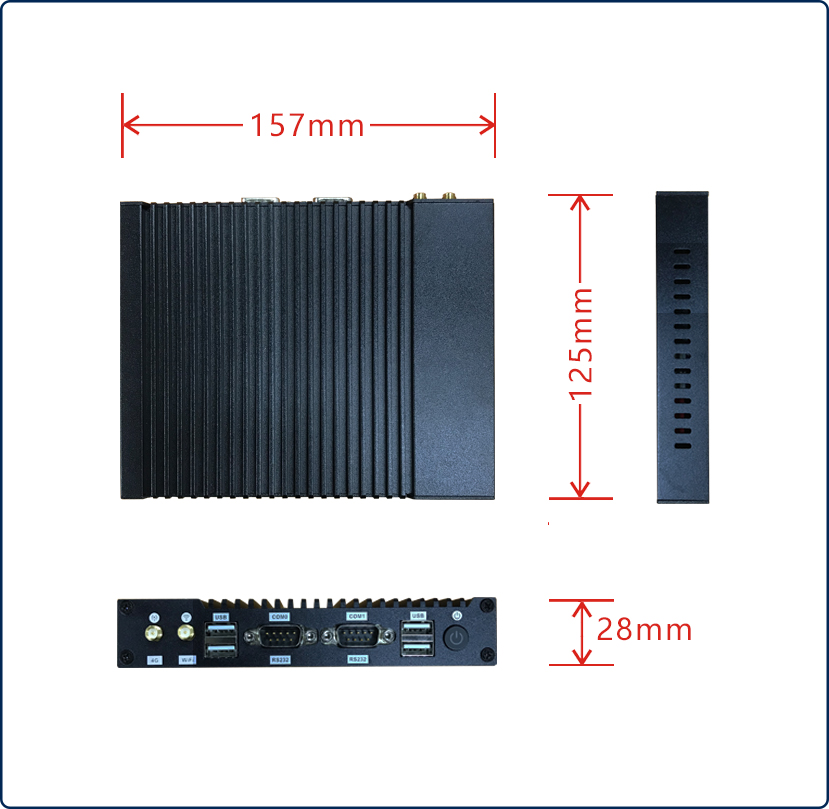

Device dimensions	157*125*28mm
CPU	Rockchip RK3568, quad-core Cortex-A55, up to 2.0GHz          RK3588, octa-core, up to 2.4GHz
GPU	Mali-G52 2EE
NPU	Up to 1Tops of computing power，                             6 Tops AI computing power,
DDR	2GB LPDDR4 standard, 4GB/8GB/16GB/32GBoptional
Flash	16GB standard, up to 128GB supported
HDMI output	1 port, supports up to 4K output
HDMI version	HDMI 2.0，HDMI 2.1
Headphone output	1 four-way headphone jack
USB host	5 USB 2.0 ports, 1 USB 3.0 port
USB OTG	1 USB OTG port

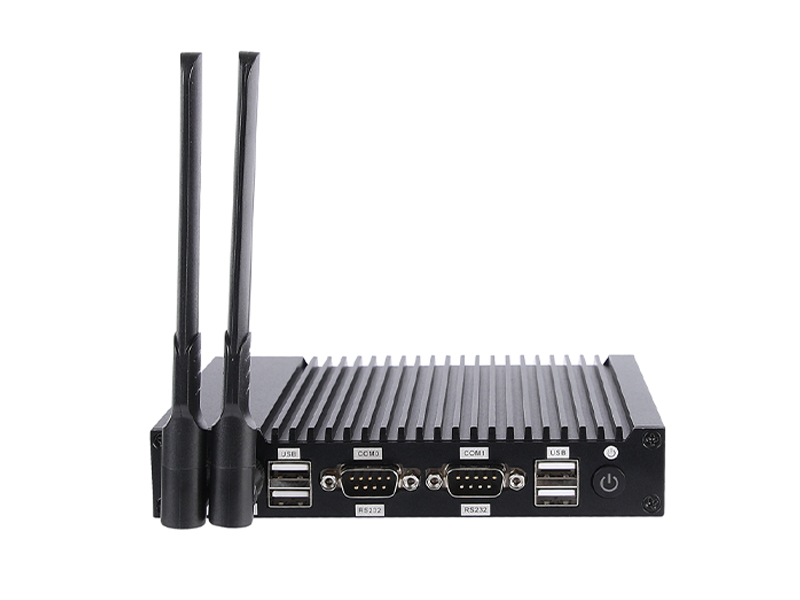

Serial port	2 RS232 serial ports (RS485 optional)
Ethernet	2 10/100/1000Mbps adaptive Ethernet ports
WiFi frequency	2.4G & 5G dual-band
WiFi, Bluetooth	Wi-Fi 6, Bluetooth V5.0
WiFi antenna	1 port
4G antenna	1 port (optional)
TF card	Supports up to 256GB
Illuminated switch	Reboot
Burn button	Firmware Upgrade
SIM card holder	1 Micro-SIM Card Slot
RTC	Supported
Timer power on/off	Supported
System upgrade	Supported
Relative humidity	Local USB Upgrade
Operating temperature	0%~90% (non-condensing)
Power supply	9V~15V Wide Voltage DC
No-load power	2.35W

Serial port definition

Scope of Application

This product is widely applicable to smart display devices, video devices, and industrial control devices,

such as industrial control hosts, IoT gateways, and industrial control scenarios.
