chip set

Intel® H610/B660/Q670

BIOS

The 32Mbit AMI supports diskless boot, network wake-up, power-on boot, watchdog, and other features.

internal storage

capacity

4GB SO-DIMM DDR4 2400MHz memory ,  Max.32GB

memory

SATA joggle

MINI PCIE

M.2

1Xm.2 PCIE

128G M.2 SSD NGFF

show

chip set

output

CPU integrated graphics HD Graphics

VGA+HDMI single display, dual display (synchronous/asynchronous)

1 ¡Á VGA (maximum resolution: 1920¡Á1080)

1 ¡ÁHDMI (Supports up to 4096x2304 resolution)

network

slug

WIFI

1 ¡Á 10/100/1000M£¨RJ45 LAN£©

1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£©

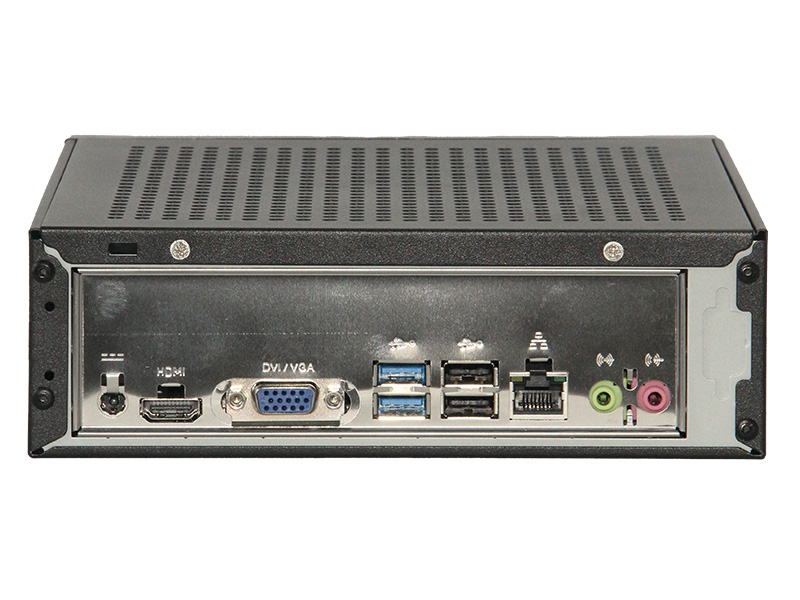

I/O

USB 3.0

USB 2.0

COM

Power button

Reset

LED lamp

DC JACK

audio frequency

2x  USB3.0

6¡Á USB2.0

1x COM (Optional)

1 ¡Á power button

1 ¡Á Reset button

            1 x power indicator light & 1x hard drive indicator light

1 ¡Á 19V DC JACK

1 ¡Á LINE-OUT &  MIC-IN

source

import

rated dissipation

DC  19V

90W

watchdog

output

margin

Interrupt, system reboot

Level 255 Fixed Interval

Physical parameters

size

223mm (L) x 190mm (W) x 60mm (H)

environment

temperature

humidity

Operating temperature: 0¡ãC to 50¡ãC Storage temperature: -20¡ãC to 70¡ãC

5%~90% No condensation

operating system

edition

Windows 10/Windows 7 / windows8 / Linux

AOS-SXH61C41ST2

Intel Celeron GXXXX X.XGHz (2-core processor), 4GB RAM, 128GB SSD

Intel Celeron GXXXX X.XGHz (2-core processor), 4GB RAM, 128GB SSD

AOS-SXH61D41ST2

Intel Pentium GXXXX X.XGHz (2-core processor), 4GB RAM, 128GB SSD

Intel Pentium GXXXX X.XGHz (2-core processor), 4GB RAM, 128GB SSD

AOS-SXH612I41ST2

AOS-SXH613I41ST2

Intel Core i3-12100 3.3GHz (4-core processor), 4GB RAM, 128GB SSD

Intel Core i3-13100 3.4GHz (4-core processor), 4GB RAM, 128GB SSD

AOS-SXH612F41ST2

AOS-SXH613F41ST2

Intel Core i5-12400 2.5GHz (6-core processor), 4GB RAM, 128GB SSD

Intel Core i5-13400 2.5GHz (10-core processor), 4GB RAM, 128GB SSD

AOS-SXH612J41ST2

AOS-SXH613J41ST2

Intel Core i7-12700 2.1GHz (12-core processor), 4GB RAM, 128GB SSD

Intel Core i7-13700 2.1GHz (16-core processor), 4GB RAM, 128GB SSD

AOS-SXH61H41ST2

AOS-SXH61H41ST2

Intel Core i9-12900 2.4GHz (16-core/24-thread), 4GB RAM, 128GB SSD

Intel Core i9-13900 2.0GHz (24-core/32-thread), 4GB RAM, 128GB SSD
