chipset

Intel® H110/Z170

BIOS

AMI 32Mbit£¬Supports disk-free startup, network wake up, power-on, and watchdog functions

Internal memory

capacity

4GB SO-DIMM DDR4 2400MHz memory ,  Max.16GB

store

SATA interface

MINI PCIE

128G SSD

1xMini PCIE

reveal

chipset

exportation

CPU integrated Graphics card HD Graphics

VGA+HDMI single display, dual display (same/asynchronous display)

1 ¡Á VGA (Max support resolution: 1920¡Á1080)

1 ¡ÁHDMI (Max support resolution: 4096x2304)

1 x DP (Max support resolution: 4096x2304 optional)

network

Chip

WIFI

1 ¡Á RTL8111E  10/100/1000M£¨RJ45 LAN£©

1 x WIFI Module support 802.11b/g/n £¨Mini PCIE half card£©

I/O

USB 3.0

USB 2.0

COM

Power button

Reset

LEDµÆ

DC JACK

񙮵

4x  USB3.0

3¡Á USB2.0

1x  COM(optional)

1 ¡Á power button

1 ¡Á Reset button

            1 x Power indicator &1x hard disk indicator

1 ¡Á DC JACK

1 ¡Á LINE-OUT &  MIC-IN £¬

Power source

input

Rated power consumption

DC  12~19V

90W

Guard dog

exportation

interval

The system restarts. Procedure

255 level timing interval

Physical parameter

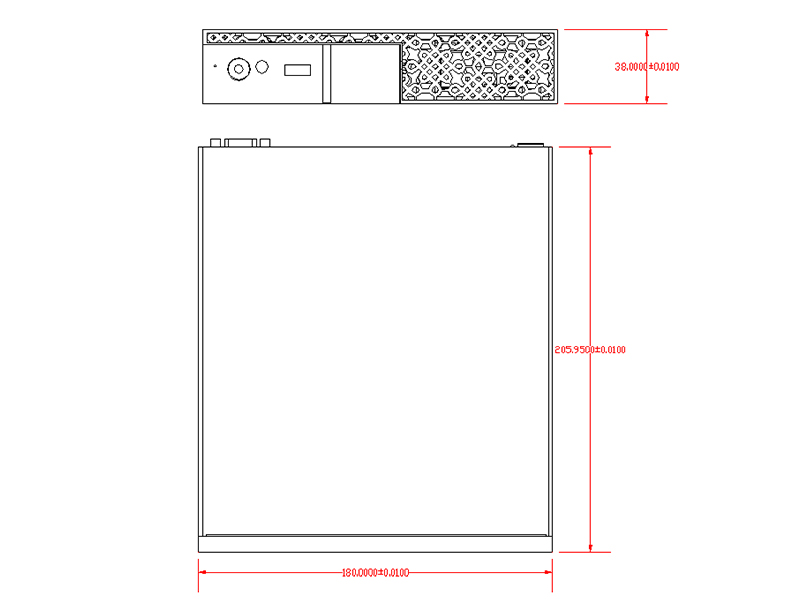

dimension

180mm (L) x 206mm (W) x 38mm (H)

environment

temperature

humidness

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20 ¡ãC ~70¡ãC

5% to 90% no condensation

Operating system

edition

Windows 10/Windows 7 / windows8 / Linux

AOS-SXH11F41SB

Intel Core i5-6400    2.8GHz     4Gmemory     128G SSD
