AOS-SXH61I41ST
Product introduction£º
Specification parameter
processor
| CPU | intel Core i3-12100 (3.3GHz/4 CORE/8-thread/12MB/HD730/14nm/60W/LGA1700) |
оƬ×é | Intel® H610/B660/Q670 | |
BIOS | AMI 32Mbit£¬Supports disk-free startup, network wake up, power-on, and watchdog functions | |
Internal memory | ÈÝÁ¿ | 4GB SO-DIMM DDR4 2400MHz memory , Max.32GB |
store | SATA½Ó¿Ú MINI PCIE M.2 |
1Xm.2 PCIE 128G M.2 SSD NGFF |
reveal | оƬ×é Êä³ö
| CPU integrated Graphics card HD Graphics VGA+HDMI single display, dual display (same/asynchronous display) 1 ¡Á VGA (Max support resolution: 1920¡Á1080) 1 ¡ÁHDMI (Max support resolution: 4096x2304) |
network | оƬ WIFI | 1 ¡Á 10/100/1000M£¨RJ45 LAN£© 1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£© |
I/O | USB 3.0 USB 2.0 COM Power button Reset LEDµÆ DC JACK ÒôƵ | 4x USB3.0 3¡Á USB2.0 1x COM(selectable) 1 ¡Á power button 1 ¡Á Reset button 1 x Power indicator &1x hard disk indicator 1 ¡Á 19V DC JACK 1 ¡Á LINE-OUT & MIC-IN |
Power source | input Rated power consumption | DC 19V 90W |
Guard dog | exportation interval | The system restarts. Procedure 255 level timing interval |
Physical parameter | dimension | 180mm (L) x 206mm (W) x 38mm (H) |
environment | temperature humidness | Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20 ¡ãC ~70¡ãC 5% to 90% no condensation |
Operating system | edition | Windows 10/Windows 7 / windows8 / Linux |
Ordering information
Sales model | Instructions |
AOS-SXH61C41ST | Intel Celeron GXXXX X.XGHz(2core) 4Gmemory 128G SSD Intel Celeron GXXXX X.XGHz(2core) 4Gmemory 128G SSD |
AOS-SXH61D41ST | Intel Pentium GXXXX X.XGHz(2core) 4Gmemory 128G SSD Intel Pentium GXXXX X.XGHz(2core) 4Gmemory 128G SSD |
AOS-SXH612I41ST AOS-SXH613I41ST | Intel Core i3-12100 3.3GHz(4core) 4Gmemory 128G SSD Intel Core i3-13100 3.4GHz(4core) 4Gmemory 128G SSD |
AOS-SXH612F41ST AOS-SXH613F41ST | Intel Core i5-12400 2.5GHz(6core) 4Gmemory 128G SSD Intel Core i5-13400 2.5GHz(10core) 4Gmemory 128G SSD |
AOS-SXH612J41ST AOS-SXH613J41ST
| Intel Core i7-12700 2.1GHz(12core) 4Gmemory 128G SSD Intel Core i7-13700 2.1GHz(16core) 4memory 128G SSD
|
AOS-SXH61H41ST AOS-SXH61H41ST
| Intel Core i9-12900 2.4GHz(1core/24threads) 4Gmemory 128G SSD Intel Core i9-13900 2.0GHz(2core/32threads)) 4Gmemory 128G SSD
|
Areas of application
Suitable for education, restaurants, hotels, shopping malls, company meetings,government affairs and other areas.

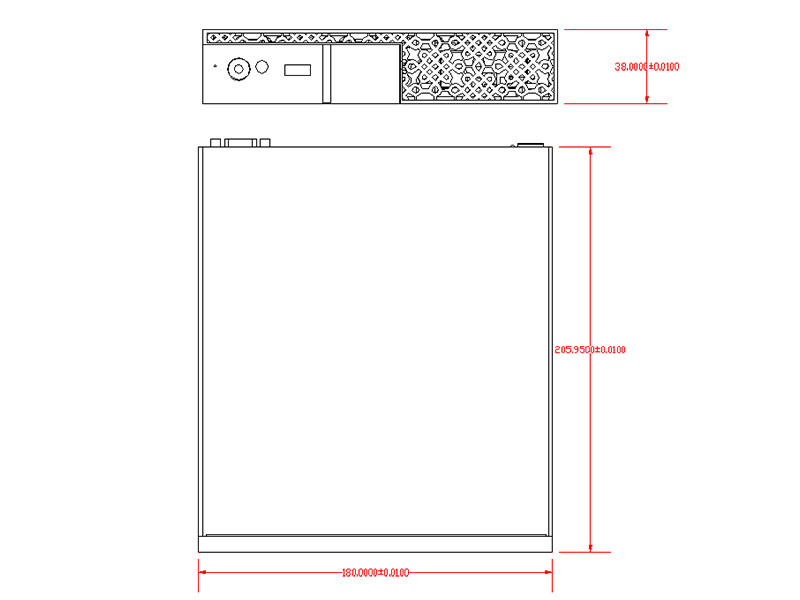

Dimension drawing
