chipset

Intel® SOC

BIOS

AMI 32Mbit£¬Supports disk-free startup, network wake up, power-on, and watchdog functions

Internal memory

capacity

8GB SO-DIMM DDR4 2666MHz memory ,  Max.32GB

store

SATA interface

M.2

SATA

256G SSD

1*SATA

reveal

chipset

exportation

CPU integrated Graphics card HD Graphics

VGA+HDMI single display, dual display (same/asynchronous display)

1 ¡Á VGA (Max support resolution: 1920¡Á1080)

1 ¡ÁHDMI (Max support resolution: 4096x2304)

network

Chip

WIFI

1 ¡Á 10/100/1000M£¨RJ45 LAN£©

1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£©

I/O

USB 3.0

COM

Power button

LEDlight

DC JACK

Audio frequency

4x  USB3.0

1x  COM(selectable)

1 ¡Á power button

            1 x Power indicator &1x hard disk indicator

1 ¡Á 12V DC JACK

1 ¡Á LINE-OUT &  MIC-IN

Power source

input

Rated power consumption

DC  12V

45-60W

Guard dog

exportation

interval

The system restarts. Procedure

255 level timing interval

Physical parameter

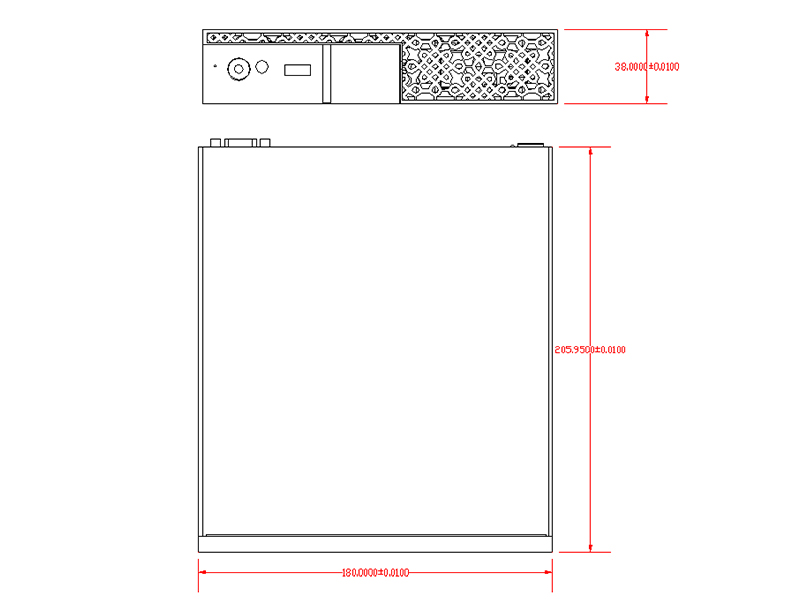

dimension

180mm (L) x 206mm (W) x 38mm (H)

environment

temperature

humidness

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20 ¡ãC ~70¡ãC

5% to 90% no condensatio

Operating system

edition

Windows 10 / Linux

AOS-SXH10F82ST

Intel I5 1035G4  1.1GHz(4core)    8Gmemory    256G SSD
