chipset

Intel® HM65

BIOS

AMI 32Mbit£¬Supports disk-free startup, network wake up, power-on, and watchdog functions

Internal memory

capacity

4GB SO-DIMM DDR3 1333 MHz memory ,  Max.8GB

store

SATA interface

MINI PCIE

128G SSD

1xMini PCIE

reveal

chipset

exportation

CPU integrated Graphics card HD Graphics

VGA+HDMI single display, dual display (same/asynchronous display)

1 ¡Á VGA (Max support resolution: 1920¡Á1080)

1 ¡ÁHDMI (Max support resolution: 1920x1080)

network

Chip

WIFI

1 ¡Á RTL8111E  10/100/1000M£¨RJ45 LAN£©

1 x WIFI Module support 802.11b/g/n £¨Mini PCIE half card£©

I/O

USB 2.0

COM

RESET

Power button

LEDµÆ

DC JACK

񙮵

7¡Á USB2.0

1 ¡ÁCOM£¨RS232£©Optional item

1 ¡Á Reset button

1 ¡Á power button

            1 x Power indicator &1x hard disk indicator

1 ¡Á DC JACK

1 ¡Á LINE-OUT &  MIC-IN

Power source

input

Rated power consumption

DC  12~19V

60W

Guard dog

exportation

interval

The system restarts. Procedure

255 level timing interval

Physical parameter

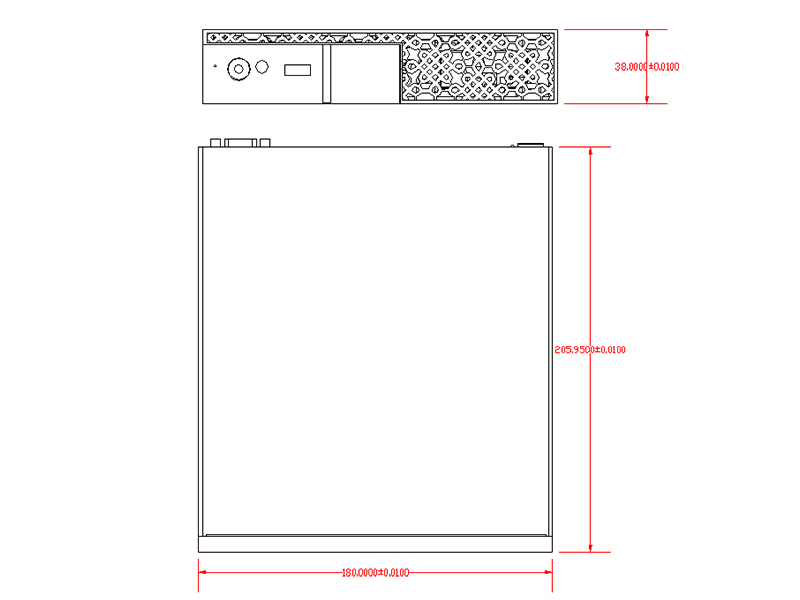

dimension

180mm (L) x 206mm (W) x 38mm (H)

environment

temperature

humidness

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20 ¡ãC ~70¡ãC

5% to 90% no condensation

Operating system

edition

Windows xp/Windows 7 / windows8 / Linux

AOS-SXH5D41ST

Intel Pentium B950    2.1GHz  4Gmemory    128GG SSD

AOS-SXH5I41ST

 Intel Core i3-2310M  2.1GHz   4Gmemory    128GG SSD

AOS-SXH5F41ST

Intel Core i5-2520M   2.5GHz   4Gmemory    128GG SSD

Intel Core i5-3320M   2.6GHz   4Gmemory   128GG SSD

AOS-SXH5J41ST

Intel Core i7-2620M   2.7GHz   4Gmemory    128GG SSD
