chipset

Intel® SOC

BIOS

AMI 32Mbit£¬Supports disk-free startup, network wake up, power-on, and watchdog functions

memory

capacity

4GB SO-DIMM DDR4 2400MHz memory ,  Max.16GB

store

SATA interface

M.SATA

1*SATA

128G SSD

reveal

chipset

Exportation

CPU integrated Graphics card HD Graphics

HDM+VGA single display, dual display (same/asynchronous display)

1 ¡ÁHDMI (Max support resolution: 3840x2160)

1 ¡Á VGA (Max support resolution: 1920x1080)

network

Chip

WIFI

4 ¡Á   10/100/1000M£¨Maximum support 4*RJ45 LAN£©

1 x WIFI Module support 802.11b/g/n £¨M.2 half card£©

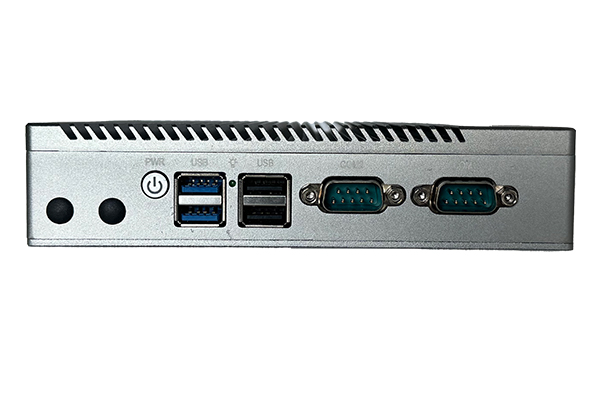

I/O

USB 3.0

USB 2.0

Power button

Reset

  COM

LED light

DC JACK

Audio frequency

2x USB3.0

4¡Á USB2.0

1 ¡Á power button

1 ¡Á Reset button

2 ¡Á  COM

1x power indicator &1x hard disk indicator

1 ¡Á DC JACK

1 ¡Á LINE-OUT & MIC-IN, integrated 6-channel sound ALC662 sound card chip

Power source

input

Rated power consumption

DC  12~19V

45W

Guard dog

exportation

interval

The system restarts. Procedure

255 level timing interval

Physical parameter

dimension

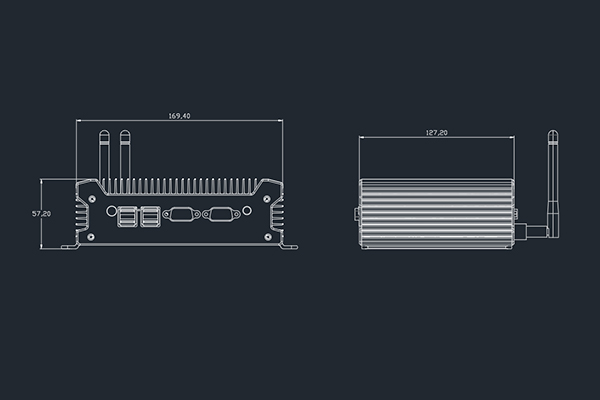

169mm (L) x 127mm (W)x57mm(H)

environment

temperature

humidness

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20 ¡ãC ~70¡ãC

5% to 90% no condensation

Operating system

edition

Windows 10/Linux

AOS-SIJ6441SM4

Intel Celeron J6412  2.0 GHz   4Gmemory    128G SSD

AOS-SIJ4141SBM4

Intel Celeron J4125  2.0 GHz   4Gmemory    128G SSD

AOS-SIN1041SM4

Intel Celeron  N100   0.8 GHz   4Gmemory    128G SSD
