chipset

Intel® H81/B85

BIOS

AMI 32Mbit£¬Supports disk-free startup, network wake up, power-on, and watchdog functions

Internal memory

capacity

4GB SO-DIMM DDR3 1333 MHz memory ,  Max.8GB

store

SATA interface

MINI PCIE

128G SSD

1xMini PCIE

reveal

Graphics chip

exportation

Independent graphicscard optional models and displayoutput channels

Independent graphics card NVIDIA GT1050TI 4G graphics memory

HDMI(rear JAE 80PIN seat)+HDMI+DP Single display, double display, three display (same/asynchronous display)

1 ¡ÁHDMI (Max support resolution: 4096x2304)

1 x DP (Max support resolution: 4096x2304)

GTX730 2GB( HDMI/HDMI)

GTX1030 2GB(HDMI/DP)

GTX1050 2GB(HDMI/HDMI/DP)

GTX1050TI 4GB(HDMI/HDMI/DP)

GTX1650 4GB(HDMI/HDMI/DP)

network

chip

WIFI

1 ¡Á RTL8111E  10/100/1000M£¨RJ45 LAN£©Dual network ports can be customized

1 x WIFI Module support 802.11b/g/n £¨Mini PCIE half card£©

I/O

USB 3.0

USB 2.0

COM

Power button

Reset

LEDlight

DC JACK

Audio frequency

2x USB3.0

5¡Á USB2.0

1x COM

1 ¡Á power button

1 x  Reset

1x power indicator &1x hard disk indicator

1 ¡Á DC JACK

1 ¡Á LINE-OUT & MIC-IN, integrated 6-channel sound ALC662 sound card chip

Power source

input

Rated power consumption

DC  12~19V

90W

Guard dog

exportation

interval

The system restarts. Procedure

255 level timing interval

Physical parameter

dimension

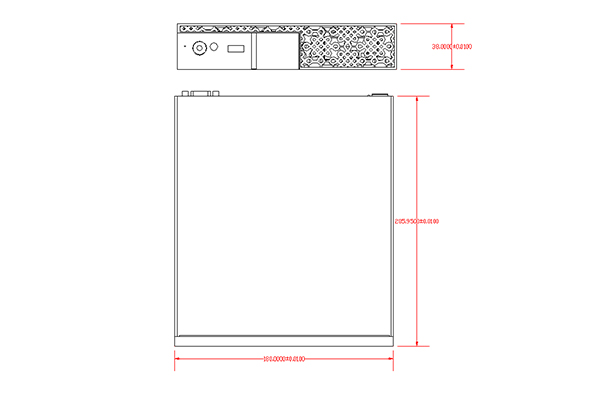

180mm (L) x 206mm (W) x 38mm (H)

environment

temperature

humidness

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20 ¡ãC ~70¡ãC

5% to 90% no condensation

Operating system

edition

Windows 10/Windows 7 / windows8 / Linux

AOS-SXH8C41S5IG

Intel Celeron G1820  2.7 GHz    4Gmemory    128G  SSD GTI1050 4G graphics card

AOS-SXH8D41S5IG

Intel Celeron G3250  3.2 GHz    4Gmemory    128G  SSD GTI1050 4G graphics card

AOS-SXH8I41S5IG

 Intel Core i3-4160   3.6GHz    4Gmemory    128G  SSD GTI1050 4G graphics card

AOS-SXH8F41S5IG

Intel Core i5-4460    3.2GHz    4Gmemory    128G  SSD GTI1050 4Ggraphics card

AOS-SXH8J41S5IG

Intel Core i7-4770S  3.1GHz    4Gmemory     128G  SSD GTI1050 4G graphics card
