chip set

Intel® H510

BIOS

AMI 32 Mbit, Support no disk start, network wake up, power on, watchdog and other functions

internal storage

capacity

4GB SO-DIMM DDR4 2400MHz memory ,  Max.32 GB

memory

M.2 interface

SATA joggle

MINI PCIE

Integrated graphics card output

128G SSD  NGFF/NVME

HDD selectable

1 X M.2 Mini PCIE

HDMI + HDMI + DP single, double, triple (same / asynchronous)

1 HDMI (Max supported resolution: 3840x2160)

1 HDMI (Max supported resolution: 3840x2160)

1 DP (Max supported resolution: 3840x2160)

HDMI + HDMI + DP single, double, triple (same / asynchronous display)

1 HDMI (Max supported resolution: 3840x2160)

1 HDMI (Max supported resolution: 3840x2160)

1 DP (Max supported resolution: 3840x2160)

show

Independent graphics card output

Independent graphicscard optional model and displayoutput channel

GTX730 2GB( HDMI/HDMI)

GTX1030 2GB(HDMI/DP)

GTX1050 2GB(HDMI/HDMI/DP)

RX550 4GB(HDMI/HDMI/HDMI)

GTX1050 2GB(HDMI/HDMI/DP)

GTX1050TI 4GB(HDMI/HDMI/DP)

GTX1060 6GB(HDMI/HDMI/DP)

GTX1070 8GB(HDMI/HDMI/DP)

GTX2080 8GB(HDMI/HDMI/DP)

RTX3060 6-12GB(HDMI/HDMI/DP)

RTX3070 8GB(HDMI/HDMI/DP)

RTX3080 16GB(HDMI/HDMI/DP)

network

slug

WIFI

1 RTL8111H 10 / 100 / 1000M (can first 2 * RJ45 LAN)

1 x WIFI Module support 802.11b/g/n £¨M.2 half card£©

I/O

USB 3.0

USB2.0

Type-c

COM

Power button

Reset

OPS joggle

LED lamp

DC JACK

One key reduction

audio frequency

4¡Á USB3.0

3¡Á USB3.0

1x  Type-c

1x COM Optional

1 ¡Á power button

1 ¡Á Reset button

1 OPS interface (80pin)

1 x power supply indicator lamp & 1x hard disk indicator lamp

1 ¡Á DC JACK

1x one-click restore

1 LINE-OUT & MIC-IN, integrated 6-channel sound effects ALC662 sound card chip

source

import

rated dissipation

DC  12~19V

90-200W

watchdog

output

margin

Interrupt, and the system restart

255-level timing interval

Physical parameters

size

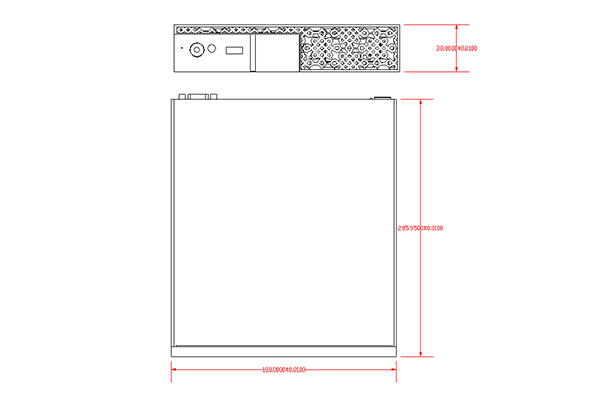

180mm (L) x 206mm (W) x 38mm (H)

environment

temperature

humidity

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20~70¡ãC

5%~90% without condensation

operating system

edition

Windows 10/ Linux

AOS- SX H51C41SB

Intel Celeron GXXXX X. XGHz (2-core) 4G memory 128 G SSD

Intel Celeron G5930 X. XGHz (2-core) 4G memory 128 G SSD

AOS- SX H51D41SB

Intel Pentium GXXXX X. XGHz (2-core) 4G memory 128 G SSD

Intel Pentium G6520 X. XGHz (2-core) 4G memory 128 G SSD

AOS- SX H51I41SB

AOS- SX H51I41SB

Intel Core i3-101003.6 GHz (4-core) 4G memory 128 GSSD

Intel Core i3-111003.8 GHz (4-core) 4G memory 128 GSSD

AOS- SX H51F41SB

AOS- SX H51F41SB

Intel Core i5-10400 2.9 GHz (6-core) 4G memory 128 GSSD

Intel Core i5-11400 2.6 GHz (6-core) 4G memory 128 GSSD

AOS- SX H51J41SB

AOS- SX H51J41SB

Intel Core i7-10700 2.9 GHz (8-core) 4G memory 128 GSSD

Intel Core i7-11700 2.5 GHz (8-core) 4G memory 128 GSSD

AOS- SX H51H41SB

AOS- SX H51H41SB

Intel Core i9-10900 2.8 GHz (10-core) 4G memory 128 GSSD

Intel Core i9-11900 2.5 GHz (8-core) 4G memory 128 GSSD

AOS- SX H51I41S7G

AOS- SX H51I41S3G

Intel Core i3-101003.6 GHz4G memory 128G SSD GT730 2G alone

Intel Core i3-111003.8 GHz4G memory 128G SSD GTX1030 2G alone

AOS- SX H31F41S5G

AOS- SX H31F41SR5G

Intel Core i5-10400 2.9 GHz4G memory 128G SSD GTX1050 2G alone

Intel Core i5-11400 2.6 GHz4G memory 128G SSD AMD RX550 4G alone

AOS- SX H51J41SR5G

AOS- SX H51J41S5IG

AOS- SX H51J41S65G

Intel Core i7-10700 2.9 GHz4G memory 128G SSD AMD RX550 4G alone

Intel Core i7-11700 2.5 GHz4G memory 128G SSD GTX1050TI 4G alone

Intel Core i7-11700 2.5 GHz4G memory 128G SSD GTX1650 4G alone
