chip set

Intel® H610/B660/Q670

BIOS

AMI 32 Mbit, Support no disk start, network wake up, power on, watchdog and other functions

internal storage

capacity

4GB SO-DIMM DDR5 4800MHz memory ,  Max.64 GB

memory

M.2 interface

SATA joggle

MINI PCIE

Integrated graphics card output

import

128G SSD  NGFF/NVME

HDD selectable

1 X M.2 Mini PCIE

HDMI + HDMI + DP + DP single, double, triple, four (same / asynchronous display)

1 HDMI 2.0 (Max supported resolution: 3840x2160)

1 HDMI 2.0 (Max supported resolution: 3840x2160)

1 DP1.4 (Maximum supported resolution: 3840x2160 / 7860 * 4320)

1 x HDMI IN (optional)

show

Independent graphics card output

Independent graphicscard optional model and displayoutput channel

HDMI + HDMI + HDMI + DP single, double, triple, four (same / asynchronous display)

1 HDMI (Max supported resolution: 3840x2160)

1 HDMI (Max supported resolution: 3840x2160)

1 DP (Max supported resolution: 3840x2160 / 7860 * 4320)

GTX1030 2GB(HDMI/DP)

GTX1050 2GB(HDMI/HDMI/DP)

RX550 4GB(HDMI/HDMI/HDMI)

GTX1050TI 4GB(HDMI/HDMI/DP)

GTX1650 4GB(HDMI/HDMI/DP)

GTX1060 6GB(HDMI/HDMI/DP)

GTX1070 8GB(HDMI/DP/DP)

GTX1080 8GB(HDMI/DP/DP)

RTX3060 6-12GB(HDMI/HDMI/DP)

RTX3070 8GB(HDMI/HDMI/DP)

RTX3080 16GB(HDMI/HDMI/DP)

A1000 4G(DP/DP)

A2000 8G(DP/DP)

T1000 4G(DP/DP)

P1000 4G(DP/DP)

P2000 4G(DP/DP)

P3000 6G(DP/DP)

network

slug

WIFI

1 RTL8111H 10 / 100 / 1000M (can first 2 * RJ45 LAN)

1 x WIFI Module support 802.11b/g/n £¨M.2 half card£©

I/O

USB 3.0

USB2.0

Type-c

COM

Power button

Reset

OPS joggle

LED lamp

DC JACK

One key reduction

audio frequency

4¡Á USB3.0

3¡Á USB2.0

1x  Type-c

1x COM Optional

1 ¡Á power button

1 ¡Á Reset button

1 OPS interface (80pin)

      1 x power supply indicator lamp & 1x hard disk indicator lamp

1 ¡Á DC JACK

1x one-click restore

1 LINE-OUT & MIC-IN, integrated 6-channel sound effects ALC662 sound card chip

source

import

rated dissipation

DC  12~19V

90-200W

watchdog

output

margin

Interrupt, and the system restart

255-level timing interval

Physical parameters

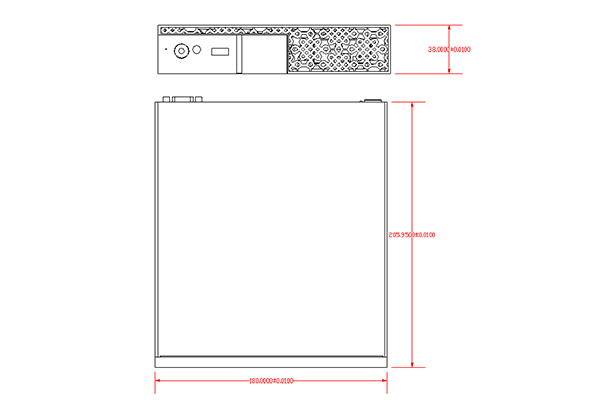

size

180mm (L) x 206mm (W) x 38mm (H)

environment

temperature

humidity

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20~70¡ãC

5%~90% without condensation

operating system

edition

Windows 11/  Windows 10/ Linux

AOS- SX H61C41SC

Intel Celeron GXXXX X. XGHz (2-core) 4G memory 128 G SSD

Intel Celeron GXXXX X. XGHz (2-core) 4G memory 128 G SSD

AOS- SX H61D41SC

Intel Pentium GXXXX X. XGHz (2-core) 4G memory 128 G SSD

Intel Pentium GXXXX X. XGHz (2-core) 4G memory 128 G SSD

AOS- SX H612I41SC

AOS- SX H613I41SC

Intel Core i3-121003.3 GHz (4-core) 4G memory 128 GSSD

Intel Core i3-131003.4 GHz (4-core) 4G memory 128 GSSD

AOS- SX H612F41SC

AOS- SX H613F41SC

Intel Core i5-12400 2.5 GHz (6-core) 4G memory 128 GSSD

Intel Core i5-13400 2.5 GHz (10 cores) 4G memory 128 GSSD

AOS- SX H612J41SC

AOS- SX H613J41SC

Intel Core i7-12700 2.1 GHz (12 cores) 4G memory 128 GSSD

Intel Core i7-13700 2.1 GHz (16 cores) 4G memory 128 GSSD

AOS- SX H61H41SC

AOS- SX H61H41SC

Intel Core i9-12900 2.4 GHz (16 cores / 24 threads) 4G memory 128 GSSD

Intel Core i9-13900 2.0 GHz (24-core / 32 threads) 4G memory 128 GSSD

AOS- SX H612I41S3G

AOS- SX H613I41SR5G

Intel Core i3-121003.3 GHz (4-core) 4G memory 128G SSD GTX1030 2G alone display

Intel Core i3-131003.4 GHz (4-core) 4G memory 128G SSD RX550 4G alone display

AOS- SX H612F41S5IG

AOS- SX H613F41S65G

Intel Core i5-12400 2.5 GHz (6 cores) 4G memory 128G SSD GTX1050TI 4G alone

Intel Core i5-13400 2.5 GHz (10 cores) 4G memory 128G SSD GTX1650 4G alone

AOS- SX H612J41S60G

AOS- SX H613J41S6SG

Intel Core i7-12700 2.1 GHz (12 cores) 4G memory 128G SSD GTX1060 6G alone

Intel Core i7-13700 2.1 GHz (16 cores) 4G memory 128G SSD GTX1660S 6G alone

AOS- SX H62X41S36G

AOS- SX H63X41S38G

Intel Core i9-12900 2.4 GHz (16 cores / 24 threads) 4G memory 128G SSD RTX3060 12G alone

Intel Core i9-13900 2.0 GHz (24 core / 32 threads) 4G memory 128G SSD RTX3080 16G alone
