chipset

Intel® H110/Z170

BIOS

AMI 32Mbit£¬Supports disk-free startup, network wake up, power-on, and watchdog functions

Internal memory

capacity

4GB SO-DIMM DDR4 2133 MHz memory ,  Max.32GB

store

SATA interface

MINI PCIE

128G SSD

1xMini PCIE

reveal

Graphics chip

exportation

Independent graphicscard optional models and displayoutput channels

Independent graphics card NVIDIA GT1050TI 4G graphics memory

HDMI(rear JAE 80PIN seat)+HDMI+DP Single display, double display, three display (same/asynchronous display)

1 ¡ÁHDMI (Max support resolution: 4096x2304)

1 x DP (Max support resolution: 4096x2304)

GTX730 2GB( HDMI/HDMI)

GTX1030 2GB(HDMI/DP)

GTX1050 2GB(HDMI/HDMI/DP)

AMD RX550 4GB(HDMI/HDMI/HDMI)

GTX1050TI 4GB(HDMI/HDMI/DP)

GTX1650 4GB(HDMI/HDMI/DP)

network

Chip

WIFI

1 ¡Á RTL8111E  10/100/1000M£¨RJ45 LAN£©Dual network ports can be customized

1 x WIFI Module support 802.11b/g/n £¨Mini PCIE half card£©

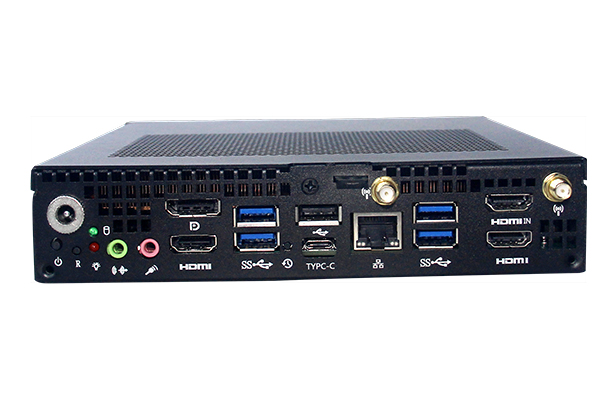

I/O

USB 3.0

USB 2.0

COM

Power button

Reset

OPS interface

LEDlight

DC JACK

Audio frequency

4x USB3.0

3¡Á USB2.0

1x COM

1 ¡Á power button

1 x  Reset

1 x OPS interface (80pin)

1x power indicator &1x hard disk indicator

1 ¡Á DC JACK

1 ¡Á LINE-OUT & MIC-IN, integrated 6-channel sound ALC662 sound card chip

Power source

input

Rated power consumption

DC  12~19V

90W

Guard dog

exportation

interval

The system restarts. Procedure

255 level timing interval

Physical parameter

dimension

180mm (L) x 206mm (W) x 38mm (H)

environment

temperature

humidness

The system restarts. Procedure

255 level timing interval

Operating system

edition

Windows 11/Windows 10/Windows 7 / Linux

AOS-SXH11C41S5G

Intel Celeron G3900 2.8GHz  4Gmemory   128G SSD  Graphics cardGT1050M 2G

AOS-SXH11D41S5G

Intel Pentium G4400 3.3GHz  4Gmemory   128G SSD  Graphics cardGT1050M 2G

AOS-SXH116I41S7G

AOS-SXH117I41S3G

AOS-SXH118I41SR5G

AOS-SXH119I41S35G

Intel Core i3-6100  3.7GHz   4Gmemory  128G SSD  Graphics cardGT730 2G

Intel Core i3-7100  3.9GHz   4Gmemory  128G SSD  Graphics cardGTX1030M 2G

Intel Core i3-8100  3.6GHz   4Gmemory  128G SSD  Graphics cardRX550 4G

Intel Core i3-9100  3.6GHz   4Gmemory  128G SSD  Graphics cardGTX1050M 2G

AOS-SXH116F41S5G

AOS-SXH117F41SR5G

AOS-SXH118F41S5IG

AOS-SXH119F41S65G

Intel Core i5-6500  3.2GHz   4Gmemory   128G SSD  Graphics cardGTX1050 2G

Intel Core i5-7500  3.4GHz   4Gmemory   128G SSD  Graphics cardAMD RX550 4G

Intel Core i5-8500  3.0GHz   4Gmemory   128G SSD  Graphics cardGTX1050TI 4G

Intel Core i5-9500  3.0GHz   4Gmemory   128G SSD  Graphics cardGTX1650 4G

AOS-SXH116J41SR5G

AOS-SXH117J41S5IG

AOS-SXH118J41S65G

Intel Core i7-6700  3.4GHz   4Gmemory   128G SSD  Graphics cardAMD RX550 4G

Intel Core i7-7700  3.6GHz   4Gmemory   128G SSD  Graphics cardGT1050TI 4G

Intel Core i7-8700  3.2GHz   4Gmemory   128G SSD  Graphics cardGTX1650 4G
