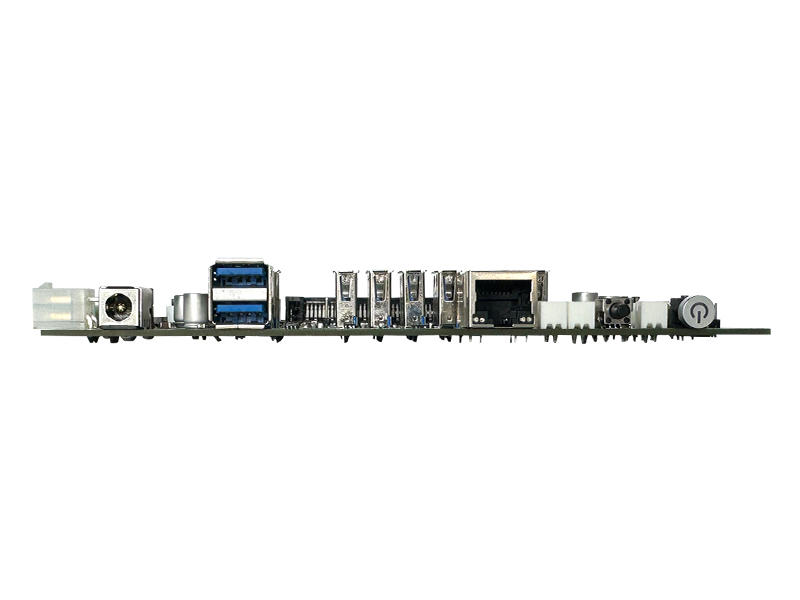

AOS-JY01
Product introduction：
OPS function expansion board
Supports 8×USB 3.0, 4 USB 2.0 interfaces
Supports 1×RJ45 100M Ethernet port
Supports 1×HDMI/1×LVDS display interface
Supports 2×SATA interfaces
Dimensions 169mm(L)×80mm(W)×17mm(H)
Product complies with CE FCC ROHS specifications
System supports WIN7/WIN10/WIN11/Kirin OS/UOS……
Specifications
show | HDMI LVDS | 1 ×HDMI 1 ×LVDS | ||
I/O | USB2.0 USB 3.0 Net mouth switch onekey recovery OPS interface audio frequency | 4× USB2.0, (of which 2 groups can be converted to SATA) 8xUSB3.0 (native with 4 USB3.0 interfaces, one USB3.0In turns out 4 USB3.0 interfaces) 1XRJ45 100 megabit network port 1XPOWER switch 1× one bond reduction OPS 80 pin 1 × LINE-OUT 3.5 standard interface, supporting dual-channel output. | ||
internally installed | built-in function | 1×3W power amplifier，2×SATA，1×JPWRLEDI (2pin)，1×JDETI (2pin)，1×JPWRBTN1 (2pin)，1×GHOST (2pin),1×ATX (4pin),1 ×HDMI，1 ×LVDS 1× audio frequency，1×USB3.0 IN | ||
power | input | DC JACK (19V, 2.5mm inner diameter) and ATX power supply. On-board 4pin socket (12 ~ 19V) | ||
physical parameter | dimensions | 169mm(L)×80mm(W)×17mm(H) | ||
environment | temperature humidity | Working temperature: 0°C ~60°C Storage temperature:-20 ~ 70 C. 5%~90% non-condensing | ||
Ordering Information
Sales Model | Specification |
AOS-JY01 | 8×USB 3.0，4个USB 2.0Interface, 1×RJ45 100M network port, 1×HDMI/1×LVDS display interface. |

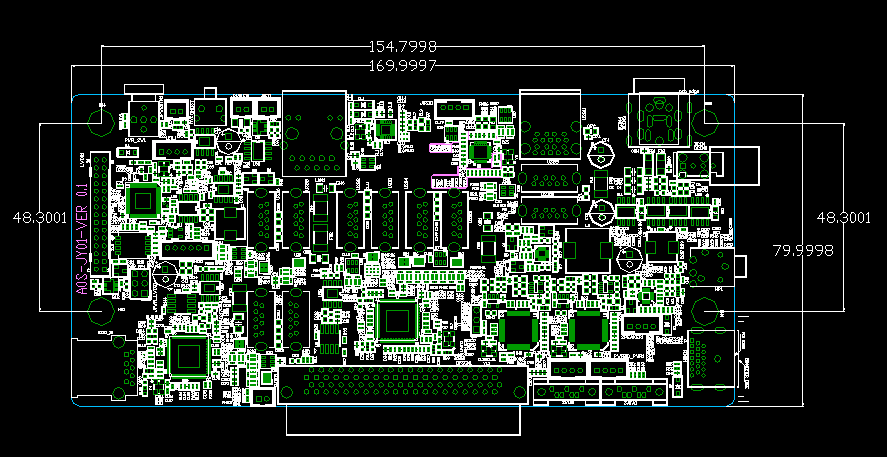

dimensional drawing
Unit:mm
Areas of application
Industrial computer, industrial tablet computer, self-service terminal, all-in-one machine, medical treatment, digital sign, POS cash register, etc.
