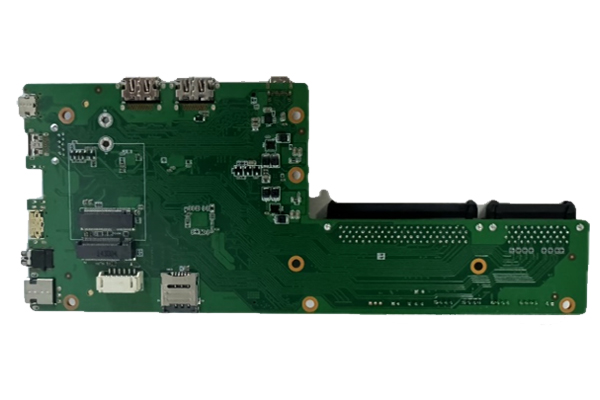

I/O

1 x DC JACK
1 x Audio
2 x MINI HDMI(one set supports HDMI IN signal switching)
1 x MINI DP compatible with 1 USB3.0 Optional
2 x type-c 1(Support display +USB3.0)
1 x HDMI IN
1 x HDMI OUT(B channel only)
1 x type-c 2(Supports unique A-channel display +USB3.0)

Built-in pin

J2

UART1

USBPWR_SET1

JUSB1/JUSB2

J1

LED

FAN1

M.2 MINI PCIE

M.2 5G

Hardware one button restore (1#/GND; 2#/GPIO)
TTL serial port (1#/VCC3; 2#/TX; 3#/RX; 4#/GND)
USB power Settings (1#/VCC; 2#/USB power supply; 3#/+5V_ALW)
USB socket (1#/VCC; 2#/DP; 3#/DM; 4#/GND)
Power button/status detection socket (1#/GND; 2#/ condition detection; 3#/GND; 4#/ Power button)
SATA LED pin (1#/LED+; 2#/LED-)
Fan socket (1#/GND; 2#/VCC 5V)
M.2 WIFI
5G module

Power supply

JPWR1

DC_IN1

Power input (1#2#3#/DC input 12-19V; 4#5#6#/GND)

DC JACK (19V, 2.5mm bore) (optional with JPWR1)

Physical parameters

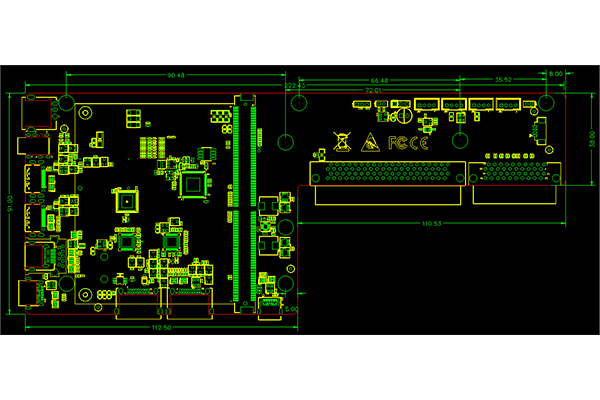

Dimension

223mm*91mm

Environment

Temperature

humidity

Operating temperature£º0¡ãC ~60¡ãC   Storage temperature£º-20~70¡ãC

5%~90% no condensation

AOS-OPSLEDXM

JAE OPS 80PIN+40PIN  2*USB2.0 1*USB3.0  HDMI+type-c display set output

AOS-OPSLED2

JAE OPS 80PIN+40PIN  2*USB2.0 1 USB3.0  HDMI+DP+type-c display set output
