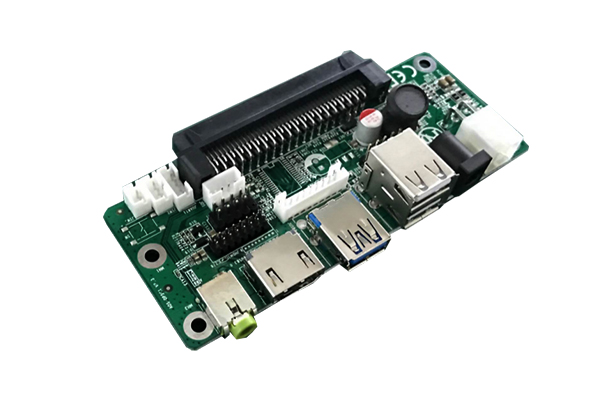

AOS-OPSC1
Product introduction：
Display | Output | 1 ×HDMI 1 × J-HDMI 16pins with 2.0 spaces |
I/O | USB 2.0 USB 3.0 COM J-SW1 J-SW2 JOS Power button OPS Interface Audio | 2× USB2.0 1xUSB3.0 1×JUART1（4pins, 2.0 spaces，signal definition：VCC(5V) GND U-TX U-RX） 1× switch pin（signal definition：PS-ON，GND） 1 × switch detection pin (3pins, signal definition: PWR-StatusGND PS-ON) 1XLED + RESET (should be change motherboard) 1 ×Power button (switch) OPS 80 pin 1 × LINE-OUT 3.5 standard interface, supports dual-channel output |
Power | Input Rated Power | DC JACK (19V, 2.5mm ID) on-board 4pins socket（12 ～ 19V） |
Physical Parameter | Dimension | Thin Mini-ITX，133x44mm |
Condition | Temperature Humidity | Working temperature：0°C ~60°C Storage temperature：-20~70°C 5%~90% No condensation |
Ordering Information
Sales Model Specification
AOS-OPSC1 JAE OPS 80 pins, 2 pcs USB2.0, 1 pcs USB3.0, HDMI out

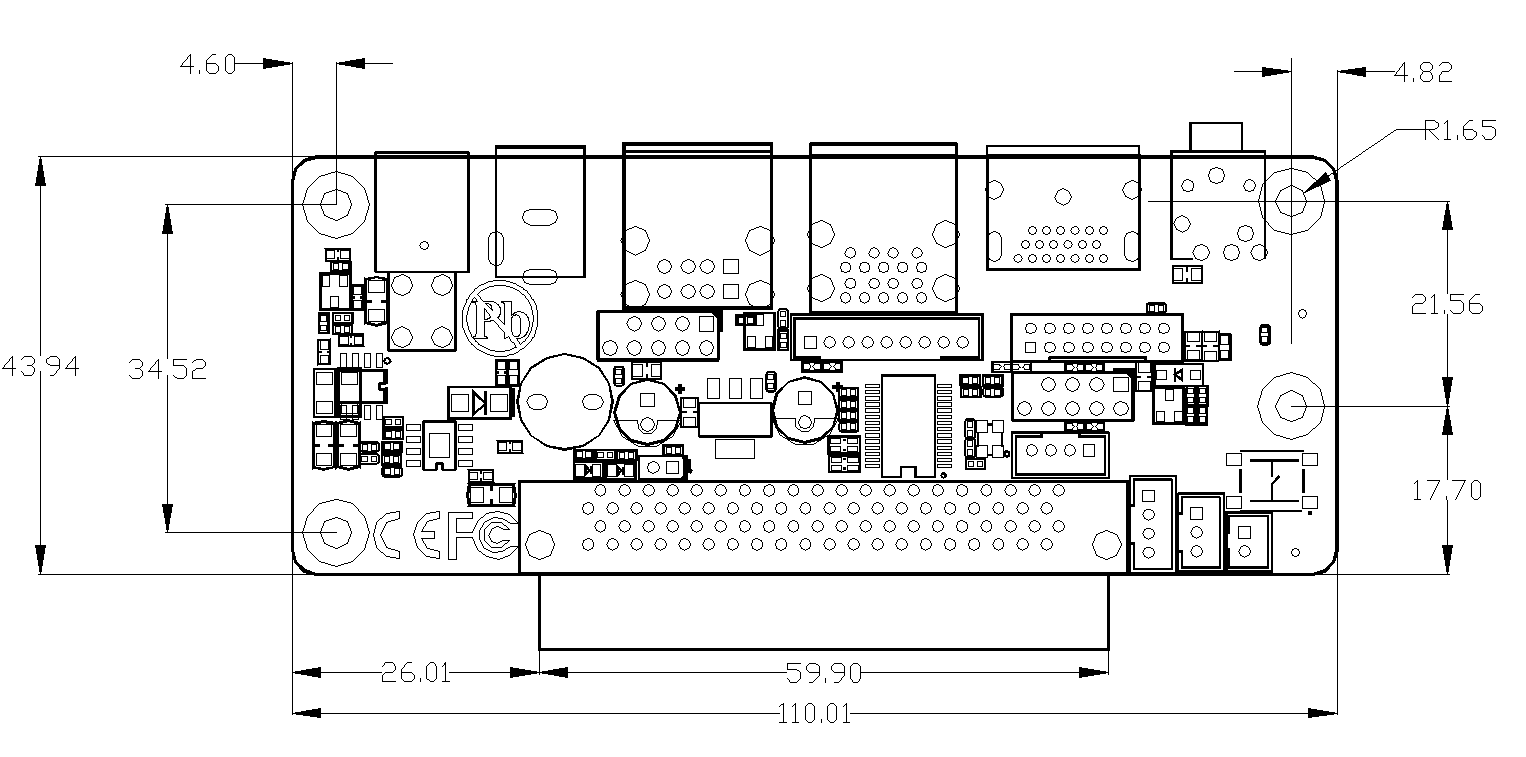

Drawing
