Chipset

SOC

BIOS

AMI 32Mbit, supports diskless boot, Wake-on-LAN, power-on startup, watchdog and other functions

Memory

Capacity

8GB 1*SO-DIMM DDR4 2133MHz memory ,  Max.32GB

Storage

Display

M.2 Interface

iGPU output

Front Panel

80PIN Interfaces

HDMI IN Function

Input

1*M.2 128G SSD  NGFF

HDMI + Type-C(DP) single display / dual display (synchronous/asynchronous display available)

 1 ¡Á TYPE-C (Max resolution: 3840¡Á2160, optional)

1 ¡Á HDMI1.4 (Max resolution: 3840¡Á2160)
1 ¡Á DP1.4 (Max resolution: 3840¡Á2160)

1 x HDMI IN(HDMI IN daughter board optional)

Network

Chip

WIFI

1 ¡Á RTL8111H  10/100/1000M£¨2*RJ45 LAN optional£©

1 x WIFI Module support 802.11b/g/n £¨M.2 half card£©

I/O

USB 3.0

Type-c

COM

Power button

Reset

OPS Interface

LED Indicator Lights

DC JACK

One-key Restore

Audio

2¡Á USB3.0

1x  Type-c£¨Video Output + USB3.0 Data£©

1x  COM Optional

1 ¡Á power button

1 ¡Á Reset button

 1 ¡Á OPS Interface£¨80pin£©

            1 ¡Á Power Indicator Light & 1 ¡Á HDD Indicator Light

1 ¡Á DC JACK

1 ¡Á One-Key Restore

1 ¡Á Line-Out & Mic-In, integrated 6-channel audio with ALC897 sound card chip

Power

Input

Rated Power

DC  12~19V

90W

Watchdog

Output

Interval

Interrupt, System Restart

255-level timing interval

Physical Parameters

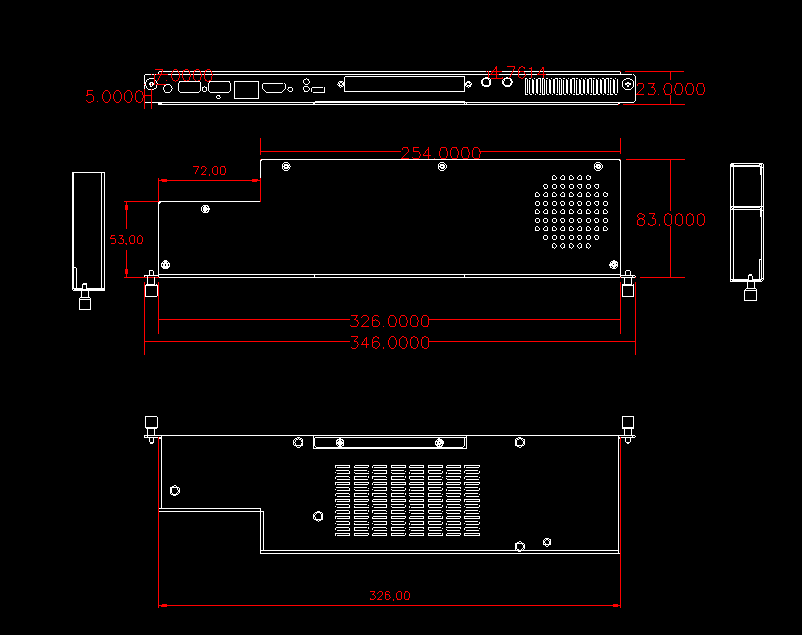

Dimensions

326mm (L) x 83mm (W) x 23mm (H)

Environment

Temperature

Humidity

Operating Temperature: 0¡ãC ~ 50¡ãC   Storage Temperature: -20¡ãC ~ 70¡ãC

5% ~ 90% non-condensing

Operating System

Version

Windows 10/11/ Linux/UOS/Kylin

AOS-SOZXK6581SLED

AOS-SOZXK65162SLED

Zhaoxin 6580 2.5GHz (8 cores / 8 threads), 8GB RAM, 128GB SSD

Zhaoxin 6580 2.5GHz (8 cores / 8 threads), 16GB RAM, 256GB SSD

AOS-SOZXK6781SLED

AOS-SOZXK67162SLED

Zhaoxin 6780A 2.7GHz (8 cores / 8 threads), 8GB RAM, 128GB SSD

Zhaoxin 6780A 2.7GHz (8 cores / 8 threads), 16GB RAM, 256GB SSD
