AOS-SOH11F81SSED
Product introduction£º
Specification parameters
processor | CPU | Intel Core i5-6400 (2.7GHz Turbo Boost 3.3G,4-core architecture, 6MB RAM, HD630 graphics, 14nm process, 65W power consumption, LGA1151 socket) -6th-9th generation Xeon processors |
chip set | Intel® H110/C236 | |
BIOS | The 32Mbit AMI supports diskless boot, network wake-up, power-on boot, watchdog, and other features. | |
internal storage | capacity | 8GB SO-DIMM DDR4 2400MHz memory , Max.32GB |
memory |
MSATA joggle MINI PCIE |
128G SSD 1X M.2 Mini PCIE |
show | Integrated graphics output
| HDMI+HDMI+DP single display, dual display, or triple display (synchronous/asynchronous) 1 ¡Á HDMI (Supports up to 3840x2160 resolution) 1 ¡Á HDMI (Supports up to 3840x2160 resolution) 1 ¡Á DP (maximum supported resolution: 3840x2160) optional 1 ¡Á HDMI IN (optional) |
network | slug WIFI | 1 ¡Á RTL8111H 10/100/1000M£¨RJ45 LAN£© 1 x WIFI Module (M.2 half card) supporting 802.11b/g/n and optional WIFI6 |
I/O | USB 3.0 COM Power button Reset OPS joggle SED lamp DC JACK Restore with One Click audio frequency | 2¡Á USB3.0 1x COM optional 1 ¡Á power button 1 ¡Á Reset button 1 ¡Á OPS interface (80 pins) 1 x power indicator light & 1 x hard drive indicator light 1 ¡Á DC JACK 1 x One-click restore 1 ¡Á LINE-OUT & MIC-IN, integrated 6-channel audio sound card chip |
source | import rated dissipation | DC 12~19V 60-90W |
watchdog | output margin | Interrupt, system reboot Level 255 Fixed Interval |
Physical parameters | size | 286mm (L) x 83mm (W) x 33mm (H) |
environment | temperature humidity | Operating temperature: 0¡ãC to 50¡ãC Storage temperature: -20¡ãC to 70¡ãC 5%~90% No condensation |
operating system | edition | Windows 7/10/ Linux |

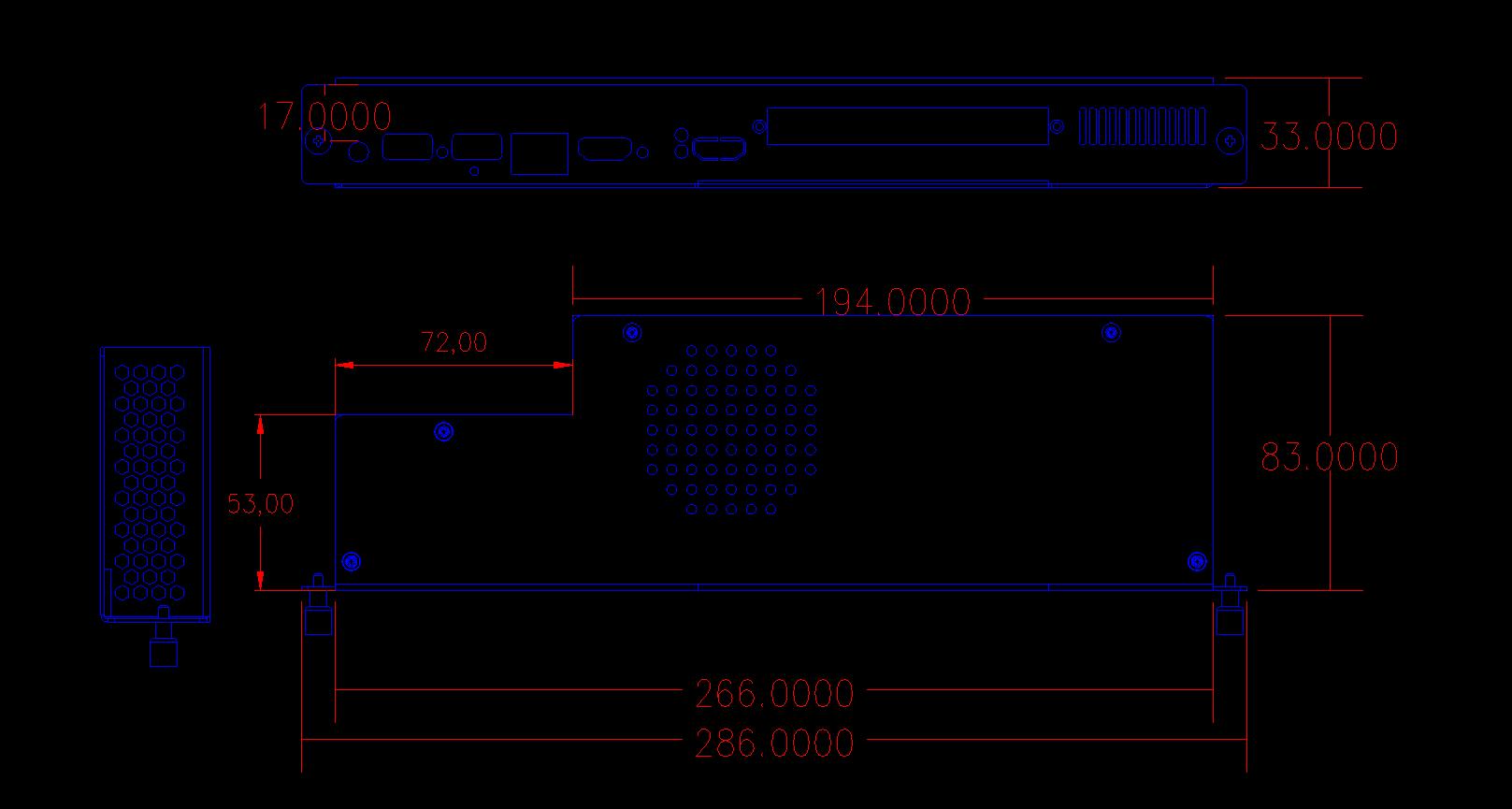

dimensional drawing
Order information
Sales model | explain |
AOS-SOH11C41SSED | Intel Celeron G3900 processor (2.8GHz, dual-core), 4GB RAM, 128GB SSD |
AOS-SOH11D41SSED
| Intel Pentium G4400 3.3GHz dual-core processor, 4GB RAM, 128GB SSD
|
AOS-SOH11I41SSED AOS-SOH11I41SSED AOS-SOH11I41SSED AOS-SOH11I41SSED
| Intel Core i3-6100 3.7GHz dual-core processor, 4GB RAM, 128GB SSD Intel Core i3-7100 3.9GHz dual-core processor, 4GB RAM, 128GB SSD Intel Core i3-8100 3.6GHz quad-core processor, 4GB RAM, 128GB SSD Intel Core i3-9100 3.6GHz quad-core processor, 4GB RAM, 128GB SSD
|
AOS-SOH11F81SSED AOS-SOH11F41SSED AOS-SOH11F41SSED AOS-SOH11F41SSED
AOS-SOH11J41SSED | Intel Core i5-6400 2.7GHz quad-core processor, 8GB RAM, 128GB SSD Intel Core i5-7400 3.0GHz quad-core processor, 4GB RAM, 128GB SSD Intel Core i5-8400 2.8GHz 6-core processor, 4GB RAM, 128GB SSD Intel Core i5-9400 2.9GHz 6-core processor, 4GB RAM, 128GB SSD
Intel Core i7-6700 3.4GHz quad-core processor, 4GB RAM, 128GB SSD |
AOS-SOH11J41SSED AOS-SOH11J41SSED
AOS-SOH11E41SSED | Intel Core i7-7700 3.6GHz quad-core processor, 4GB RAM, 128GB SSD Intel Core i7-8700 3.2GHz 6-core processor, 4GB RAM, 128GB SSD
Intel Xeon E-series processor (4-6-8 cores), 4GB RAM, 128GB SSD |
application are Ideal for education, restaurants, hotels, shopping malls, corporate meetings, and government transparency initiatives.
