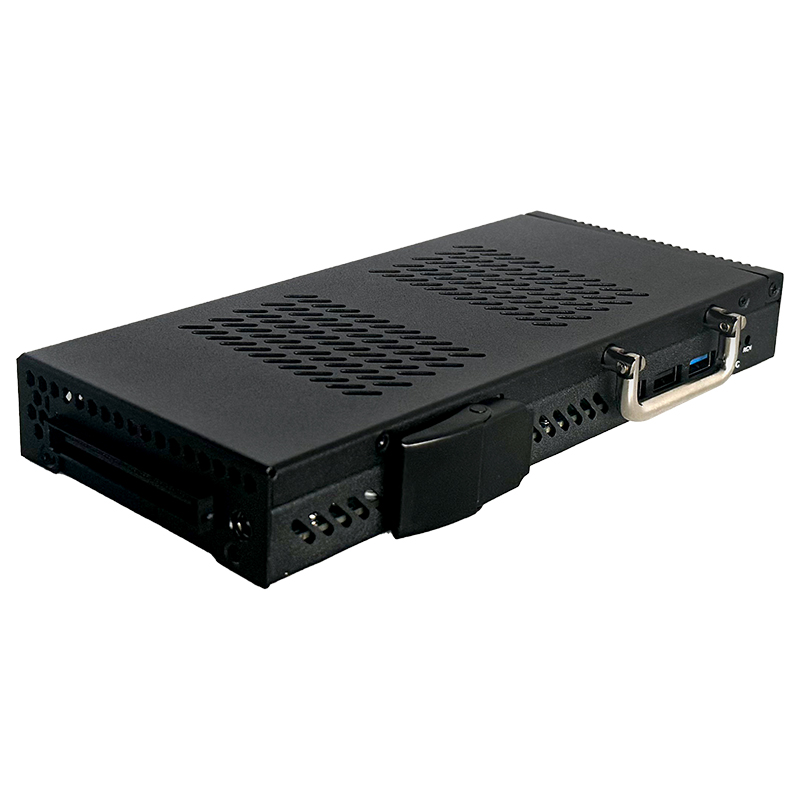

AOS-SOAUF41SHH
Product introduction£º
Specification parameter
processor
| CPU | Intel Alderlake-u I5 12450H 2.0GHZ 8 core 12 threads (I3 1215U 1.2G 6 core 8 threads /I5 1240P 12 core 16 threads /12450H/13450H/I7 1260P 2.1 12 core 16 threads /1360P/13620H) |
chipset | Intel® SOC | |
BIOS | AMI 32Mbit£¬Supports disk-free startup, network wake up, power-on, and watchdog functions | |
Internal memory | capacity | 4GB SO-DIMM 2xDDR4 2400 MHz memory , Max.64GB |
store |
M.2
|
1Xm.2 NGFF/NVME
|
reveal | Collective display exportation | CPU integrated Graphics for 12th Gen /Iris Xe 1 ¡ÁHDMI2.0 (Max support resolution: 4096x2304 60HZ) |
network | Chip WIFI | 1 ¡Á 10/100/1000M 1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£© |
I/O | USB 3.2 USB 2.0 Type-c Power button OPS interface COM LED light One-button restore DC JACK Audio frequency | 3x USB3.2 2 xUSB 2.0 1x type-c 1 ¡Á power button 1 x OPS interface (80pin) 1 x RS232 COM (optional) 1x power indicator &1x hard disk indicator 1 x hardware system restore in one touch 1 ¡Á DC JACK 1 ¡Á LINE-OUT & MIC-IN |
Power source | input Rated power consumption | DC 12~19V 45-90W |
Guard dog | exportation interval | The system restarts. Procedure 255 level timing interval |
Physical parameter | dimension | 220mm (L) x 100mm (W)x30mm(H) |
environment | temperature humidness | Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20 ¡ãC ~70¡ãC 5% to 90% no condensation |
Operating system | edition | Windows 10/Windows 11 / Linux |
Ordering information
Sales model | Instructions |
AOS-SOAUI41SHH | Intel I3 1215U 1.2GHz 4Gmemory 128G SSD |
AOS-SOAUF41SHH | Intel I5 12450H 2.0GHz 4Gmemory 128G SSD Intel I5 13450H 4Gmemory 128G SSD |
AOS-SOAUJ41SHH | Intel I7 1260P 2.1GHz 4Gmemory 128G SSD Intel I7 13620H 4Gmemory 128G SSD |
Application field
Suitable for education, restaurants, hotels, shopping malls, company meetings, government affairs and other fields.
