AOS-SOI10F82SC
Product introduction£º
Product introduction
OPS plug-in modular installation
Supports Icelake-u Intel Core i5 1038NG7 / Intel Core i7 1068NG7 CPUs
Supports 4 USB ports (1 USB 3.1 / 3 USB 2.0)
Supports Gigabit Ethernet, HDMI + HDMI + DP asynchronous triple display
Supports 4K 60Hz ultra-high-definition display (3840 x 2160)
Supports Type-C
Supports Wake-on-LAN, EUP energy saving, power-on restart, watchdog timer, etc.
Complies with CE, FCC, and ROHS regulations
Dimensions: 180mm x 119mm x 30mm
Specification
Cpu | CPU | Intel Ice lake-u I5 1038ng7 2.0GHZ quad Core (I5 1038NG7 4 Core/I7 1068NG7 4 Core) |
Chipset | Intel® SOC | |
BIOS | AMI 32Mbit, Diskless boot, Networking awakeing, Power-on boot, watchdog, ect | |
Memory | Capacity | 8GB SO-DIMM 2xDDR4 2400 MHz memory , Max.32GB |
Storage | SATA MINI PCIE | 2.5¨•HDD(Choice) 1xM.2 256G SSD/nvme |
Disply | Integrated graphics Output
| CPU Integrated graphics Card Iris PLUS HDMI+HDMI+DP Single Disply,dual Disply,Triple Disply£¨Synchronous/Asynchronous£© 1 ¡ÁHDMI (Max Supports£º3840x2160 60HZ£© 1X DP(Max Supports£º3840x2160 60HZ) |
Internet | Lan WIFI | 1 ¡Á 10/100/1000M£¨RJ45 LAN£© 1 x WIFI 2.4G/5G/BT £¨WIFI6 Choice£© |
I/O | USB 3.0 USB 2.0 Type-c Power button Reset OPS Port COM LED Light One-click restore DC JACK Audio | 1x USB3.1 3¡Á USB2.0 1x type-c 1 ¡Á power button 1 ¡Á Reset button 1 ¡Á OPS Port£¨80pin£© 1 ¡Á RS232 COM£¨¿ÉÑ¡£© 1 x Power Light &1xHDD Light 1 x One-click restore for the hardware system 1 ¡Á DC JACK 1 ¡Á LINE-OUT & MIC-IN £¬integrated 6-Channel Sound effect ALC662 Sound card ship |
Power | Input Rated Power | DC 12~19V 60-90W |
WatchDog | Input Interval | Interrupt, system restart 255 time interval |
Physical Parameters | Dimension | 180mm (L) x 119mm (W)x30mm(H) |
Environment | Temperature Humidity | Working Temp: 0¡ãC ~50¡ãC, Storage Temp: -20~70¡ãC 5%~90% No Condensation |
Operating System | Version | Windows 11/Windows 10/Windows 7 / Linux |
Ordering Information
Sales Model | Specification |
AOS-SOI10I41SC | Intel I3 4G Memory 128G SSD |
AOS-SOI10F82SC | Intel I5 1038NG7 2.0GHz 8G Memory 256G SSD |
AOS-SOI10J162SC | Intel I7 1068NG7 2.3GHz 16G Memory 256G SSD |

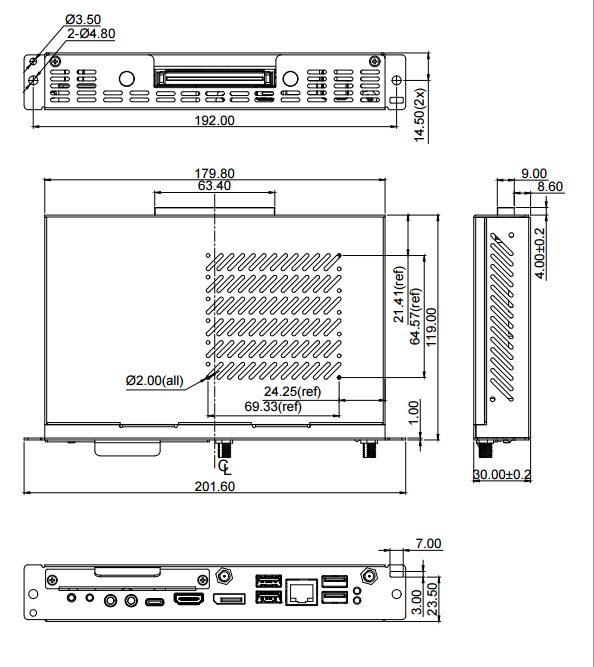

Dimension picture
Areas of Appliation
Application to Educational£¬Restaurant£¬Hotel£¬Shopping£¬Compang meeting£¬Goverment Affairs Disclosur¡£
