AOS-SOAUF41SC---2HDMI
Product introduction£º
Product introduction
4K/5K/8K display OPS plug-in computer (supports 102-inch all-in-one computer)
Alder Lake-u I3 1215U/I5-1240P/I7-1360P
Support 3 sets of USB (3 sets of USB3.1)
Support Gigabit network port (optional dual network port), support TYPE-C
Support 2xHDMI2.0 /OPS supports HDMI 2.0+DP1.4
Support 4K/5K/8K (3840*2160, 5120*2880, 7680*4320)
Support network wake-up, EUP energy saving, power-on boot, watchdog, etc.
The product complies with CE FCC ROHS specifications
Size: 180MM*119MM*30MM
Specification
Processor | CPU | Intel Alderlake-u I5 1240P 1.7GHZ Twelve cores and sixteen threads (I3 1215U 1.2G 6 core/I5 1240P 12 core/12450H/13450H/I7 1260P 2.1 12core /1360P/13620H) |
Chipset | Intel® SOC | |
BIOS | AMI 32Mbit£¬support diskless boot, wake on Lan, power-on boot, watchdog, etc. | |
Memory | Capacity | 4GB SO-DIMM 1xDDR4 2400 MHz memory , Max.32GB |
Storage | SATA interface M.2 | 2.5¨•HDD(optional) 1X 128G SSD M.2 NGFF/NVME(optional) |
Display | Jixian output
| CPU integrated graphics Graphics for 12th Gen /Iris Xe 2*HDMI+DPSingle display, double display, triple display (synchronous/asynchronous/splicing display£© 2 ¡ÁHDMI2.0 £¨max£º4096x2304 60HZ£© 1X DP1.4 Optional (resolution£º4096*2304¡¢5120*2880¡¢7680*4320 60HZ)4K/5K/8K
|
Ethernet | Chip WIFI | 1 ¡Á 10/100/1000M(optional 2*RJ45) 1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£© |
I/O | USB 3.1 Type-c Power button OPS interface COM LED light onekey recovery DC JACK Audio | 3x USB3.1 1x type-c(optional RJ45 LAN) 1 ¡Á power button 1 ¡ÁOPS interface £¨80pin£© 1 ¡Á RS232 COM(optional) 1 x power indicator lamp &1x hard disk indicator lamp 1 x hardware system one-click restore 1 ¡Á DC JACK 1 ¡Á LINE-OUT & MIC-IN |
Power | Input Rated power | DC 12~19V 45-90W |
Watchdog | Output Interval | Interrupt, system restart 255-level timing interval |
Physical parameters | Dimensions | 180mm (L) x 119mm (W)x30mm(H) |
Environment | Temperature Humidity | Working temperature: 0¡ãC ~50¡ãC Storage temperature:-20 ~ 70 C. 5%~90% non-condensing |
Operating system | Vision | Windows 10/Windows 11 / Linux |

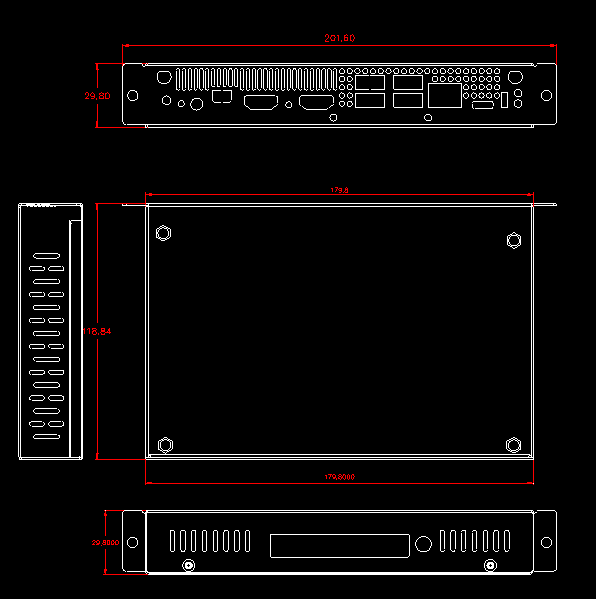

dimensional drawing
Ordering Information
Sales Model | Specification |
AOS-SOAUI41SC | Intel I3 1215U 1.2GHz 4G Memory 128G SSD |
AOS-SOAUF41SC | Intel I5 1240P/12450H/1235U 4G Memory 128G SSD Intel I5 1340P/13450H/1335U 4G Memory 128G SSD |
AOS-SOAUJ41SC | Intel I7 1260P/12700H/1255U 4G Memory 128G SSD Intel I7 1360P/13620H/1355U 4G Memory 128G SSD |
Areas of application
Applicable to education, restaurants, hotels, shopping malls, companymeetings, government affairs disclosure and other areas.
