chipset

Intel® SOC

BIOS

AMI 32Mbit£¬Supports disk-free startup, network wake up, power-on, and watchdog functions

Internal memory

capacity

8GB SO-DIMM 2xDDR5 4800 MHz memory ,  Max.64GB

store

SATA port

M.2

2.5¨•HDD(selectable)

1Xm.2 NGFF/NVME

reveal

Collective display

exportation

CPU integrated graphics Xe LPG

HDMI+HDMI +DP+DP Single display, double display, three display, four display (same/asynchronous/splicing display)

1 x HDMI2.1 (Max support resolution: 4096x2304 60HZ)

1X DP2.1 (supported resolution: 4096*2304, 5120*2880, 7680*4320 60HZ)4K/5K/8K

network

Chip

WIFI

1 ¡Á 10/100/1000M/2.5G RTL8125BG

1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£©

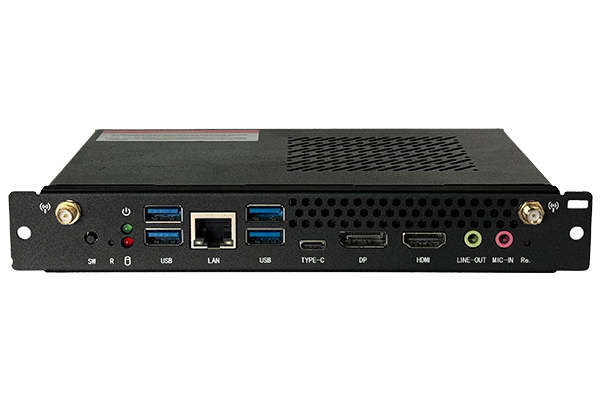

I/O

USB 3.1

Type-c

Power button

OPS port

  COM

LED light

One-button restore

DC JACK

Audio frequency

4x USB3.1

1x  type-c Aegis

1 ¡Á power button

1 ¡Á OPS port£¨80pin£©

1 ¡Á RS232 COM£¨selectable£©

            1x power indicator &1x hard disk indicator

1 x hardware system restore in one touch

1 ¡Á DC JACK

1 ¡Á LINE-OUT &  MIC-IN

Power source

input

Rated power consumption

DC  12~19V

45-90W

Guard dog

exportation

interval

The system restarts. Procedure

255 level timing interval

Physical parameter

dimension

180mm (L) x 119mm (W)x30mm(H)

environment

temperature

humidness

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20 ¡ãC ~70¡ãC

5% to 90% no condensation

Operating system

edition

Windows 10/Windows 11 / Linux

AOS-SOMUI41SC

Intel Ultra3     8GÄÚ´æ      128G SSD

AOS-SOMUF41SC

Intel Ultra5 135H/135U      8Gmemory      128G SSD

AOS-SOMUJ41SC

Intel Ultra7 155H/155U       8Gmemory      128G SSD

AOS-SOMUX41SC

Intel Ultra9 185H/185U       8Gmemory      128G SSD
